Double Swing Side Pulley Sheave 76mm (Snatch Block for 10mm Rope)

SKU 167-14-4
Availability:
Only 1 left!
Original price $132.00 - Original price $132.00
Original price
$132.00
$132.00 - $132.00
Current price $132.00
Inc Vat

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

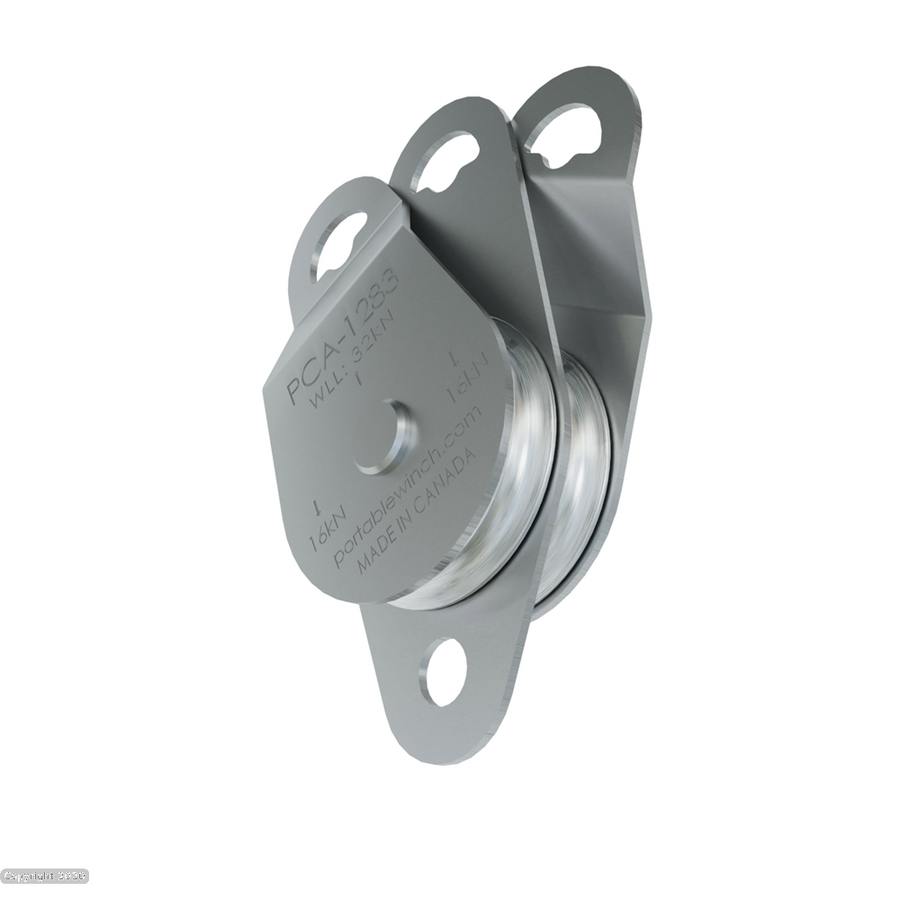

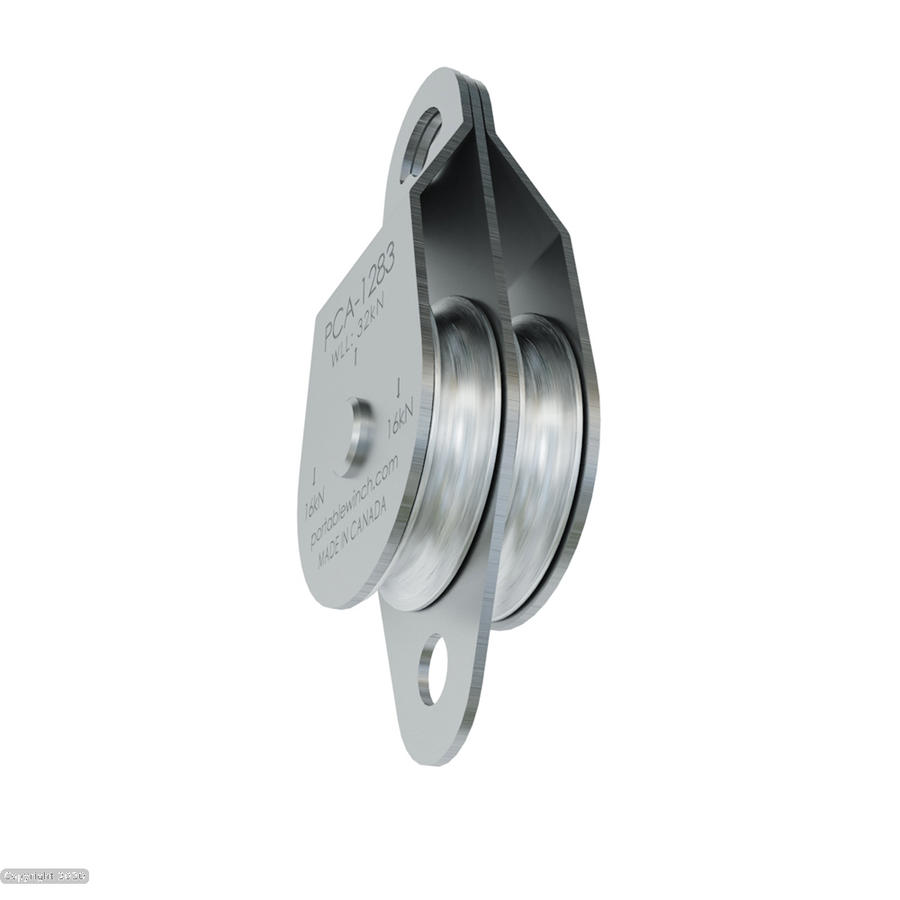

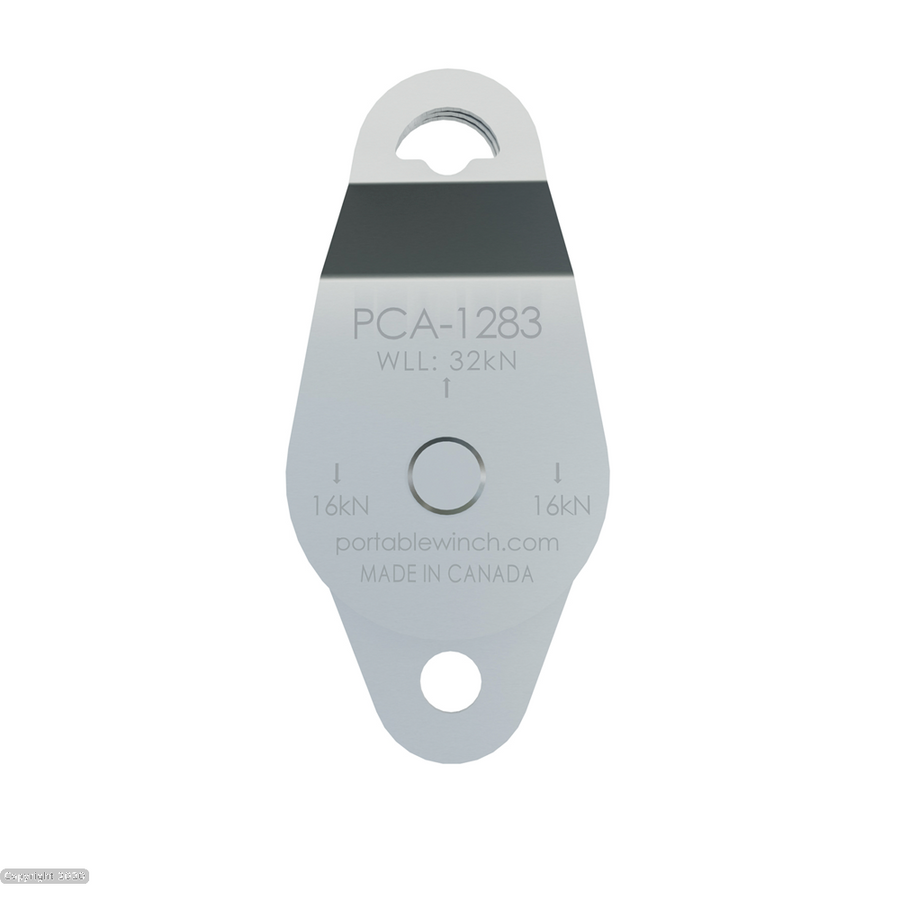

Double Swing Side Pulley Sheave 76 MM Ref: 167-14-4 (Snatch Block)

Portable Winch


This swing-side pulley opens to install rope and keep it from going out.

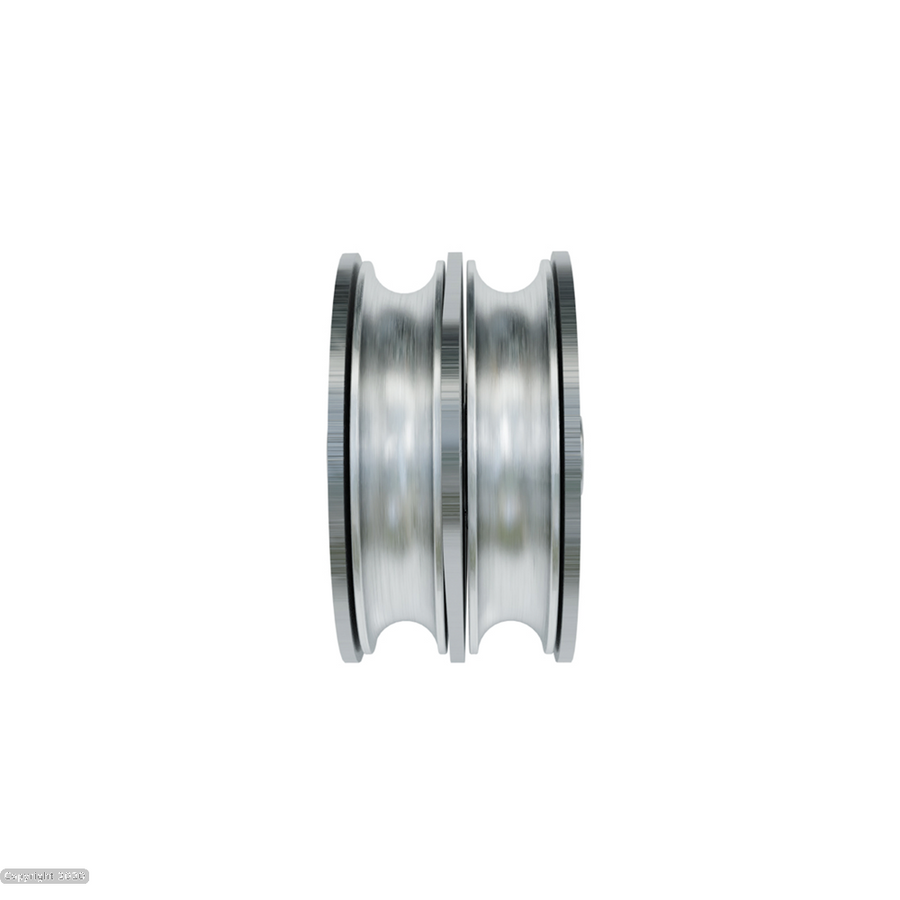

Its two 76 mm aluminum sheaves are mounted on a self-lubricating bronze bearing and provide an efficiency of 98%. The sides, the center plate and the shaft are made of stainless steel.

An excellent pulley, robust and durable. A hole at the bottom of the center plate allows to attach the end of the rope with a carabiner when needed.

Use 50kN carabiners (PCA-1702) or 70kN (PCA-1701) to attach the pulley to a polyester sling.

When using this pulley along with the single pulley PCA-1275, you can quadruple the pulling strength. With 2 of these double pulleys, 5 tons of pulling power will be generated when using the PCW3000-Li.

Ideal rope diameter : 10 mm

SPECIFICATIONS

Minimum Breaking Load (metric) : 90 kN (9185 kg)
Working Load Limit (metric) : N/A
Material : Sides: Stainless steel. Sheaves: Aluminum

WEIGHT & DIMENSIONS

Weight (metric) : 0,82 kg
Diameter (metric) : 76 mm
Length (metric) : 18,34 cm
Width (metric) : 7,95 cm
Height (metric) : 4,88 cm

ROPE

Minimum diameter (metric) : 6 mm
Maximum diameter (metric) : 10 mm

ADDITIONAL INFORMATION

Additional Information : Not designed for steel cable.
Additional information : The NEWTON is the International System unit for force; it is equal to the amount of net force required to accelerate a mass of one kilogram at a rate of one meter per second squared. --- The WORKING LOAD LIMIT (WLL) is the maximum load which should not be exceeded under any condition. --- The MINIMUM BREAKING STRENGTH (MBS) is observed during a destructive test. You should divide it by an appropriate safety factor.
