The GT Viper 1500kg chain block is a compact hand chain block for straight vertical lifting, finished in durable matt black and built to meet the working load limit requirements of BS EN 13157.
1500kg chain block built for durability
This manual chain hoist for lifting uses high performance materials and sealed bearings for extra protection and simple repair. Choose a 3m, 6m, 10m or 12m height of lift, or order the carcase alone.
-
Grade 80 fine tolerance calibrated load chain to BS EN 818-7
-
Electro galvanised calibrated hand chain
-
Top and bottom hooks with heavy duty cast catches
-
Minimum breaking load 4 times the working load limit
-
Marked and certified in accordance with BS EN 13157
A dependable GT Viper chain block
Needing just 265N of effort to raise the full load, this hand chain block suits workshops, plant and site lifting. Browse our full range of chain blocks or explore more hand chain hoists at Winchshop.

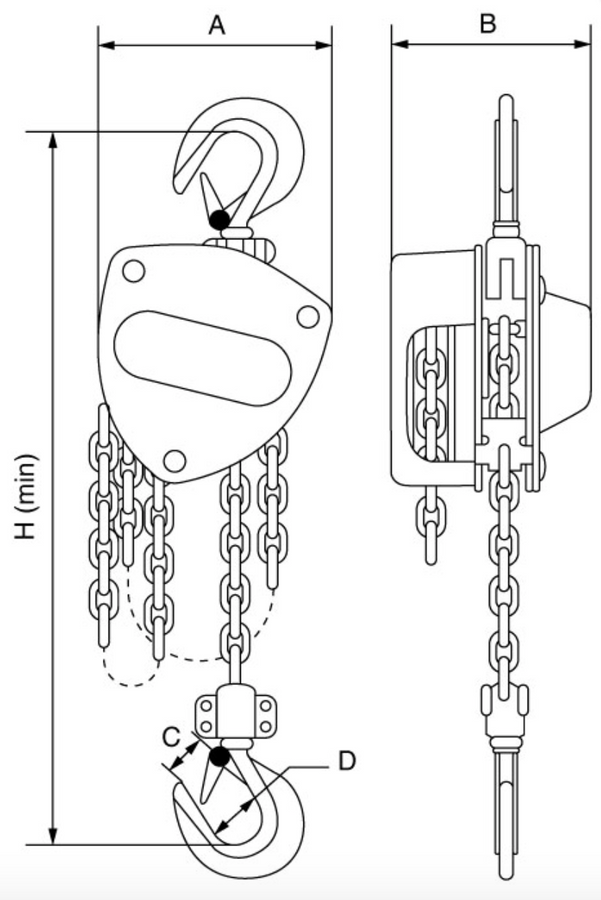

Spec
| Product Code |
Capacity |
A |
B |
C |
D |
H (min) |
| 3 mtr |
6 mtr |
12 mtr |
Carcase |
kgs |
mm |
mm |
mm |
mm |
mm |
| 286-502-1 |
286-502-2 |
286-502-4 |
286-502-5 |
1,500 |
182 |
148 |
38 |
52 |
392 |
Technical Data
| Capacity |
Effort req'd to lift max load |
Load Chain Dia |
Falls of Load Chain |
Weight (3 mtr HOL) |
Extra Weight per mtr |
| kgs |
N |
mm |
|
kgs |
kgs |
| 1,500 |
265 |
7.1 x 21 |
1 |
17 |
1.07 |
