Green Pin Standard DEE Shackles with Screw Collar Pin

  • £2.69 GBP


Green Pin DEE Shackles with Screw Collar Pin

Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems.

Our Green Pin Shackles have the following specification.

  • Grade 6 high tensile steel, quenched and tempered.
  • Minimum breaking load is 6 times the W.L.L.
  • Conforms to EN 13889 and meets the performance requirements of US Fed Spec RC-C-271 Type IVA class 2, Grade A.
  • Hot dipped galvanised.
  • Temperature range -20 ° C upto +200 ° C.
  • Supplied with proof load certificate, material certificate available on request.
  • DNV Type Approved product (see product support for the latest certificate).

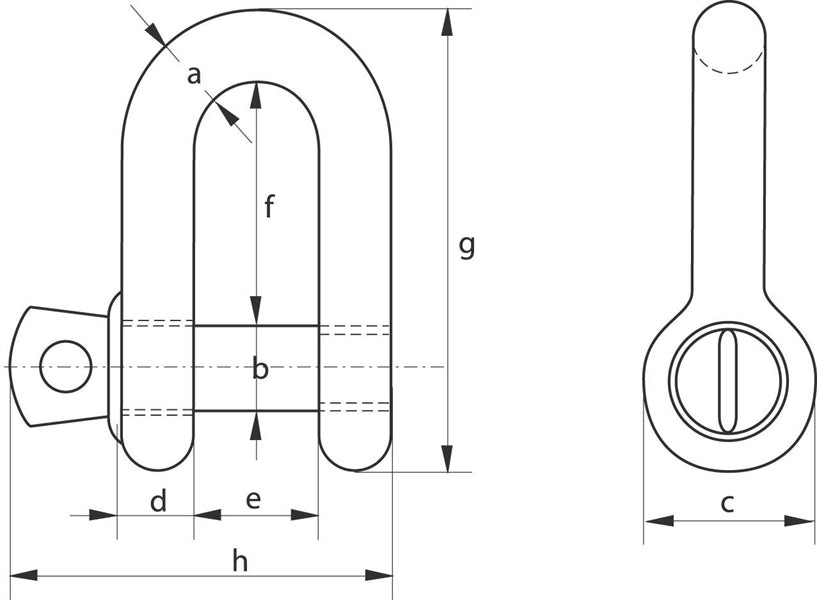

Code W.L.L a b c d e f g h Weight
  tonnes (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) kgs
269.3.1 0.33 5 6 12.5 5 9.5 19 38 31 0.02
269.3.2 0.5 7 8 17 7 12 22 47 40 0.05
269.3.3 0.75 9 10 21 9 13.5 26 56 49 0.09
269.3.4 1 10 11 23 10 17 32 66 56 0.14
269.3.5 1.5 11 13 26 11 19 37 74 68 0.19
269.3.6 2 13.5 16 34 13.5 22 43 85 76 0.32
269.3.7 3.25 16 19 40 16 27 51 105 93 0.54
269.3.8 4.75 19 22 47 19 31 59 125 107 0.87
269.3.9 6.5 22 25 53 22 36 73 144 123 1.34
269.3.10 8.5 25 28 60 25 43 85 161 141 2.08
269.3.11 9.5 28 32 67 28 47 90 179 158 2.77
269.3.12 12 32 35 74 32 51 94 199 176 3.72
269.3.13 13.5 35 38 80 35 57 115 220 192 5.14
269.3.14 17 38 42 89 38 60 127 239 208 6.85
269.3.15 25 45 50 104 45 74 149 283 250 11.45
269.3.16 35 50 57 111 50 83 171 333 281 16.86
269.3.17 55 65 70 145 65 105 203 399 355 32.65

Green Pin Standard DEE Shackles with Screw Collar Pin

Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems.
