Closed Body Rigging Screw Jaw/Jaw

Closed Body Rigging Screw Jaw/Jaw

by GT
SKU 286-903-1
Availability:
10 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
13 in stock, ready to be shipped
Availability:
In stock
Availability:
10 in stock, ready to be shipped
Availability:
9 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
£4.58 - £315.00
£4.58
£4.58 - £315.00
£4.58

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

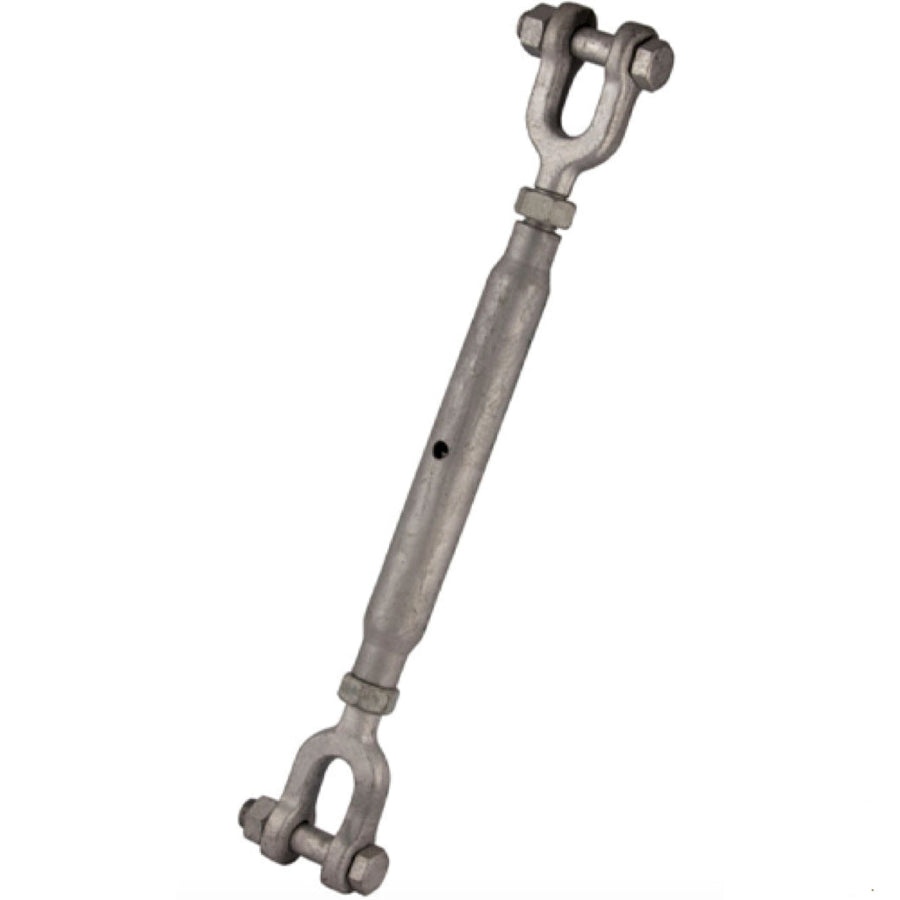

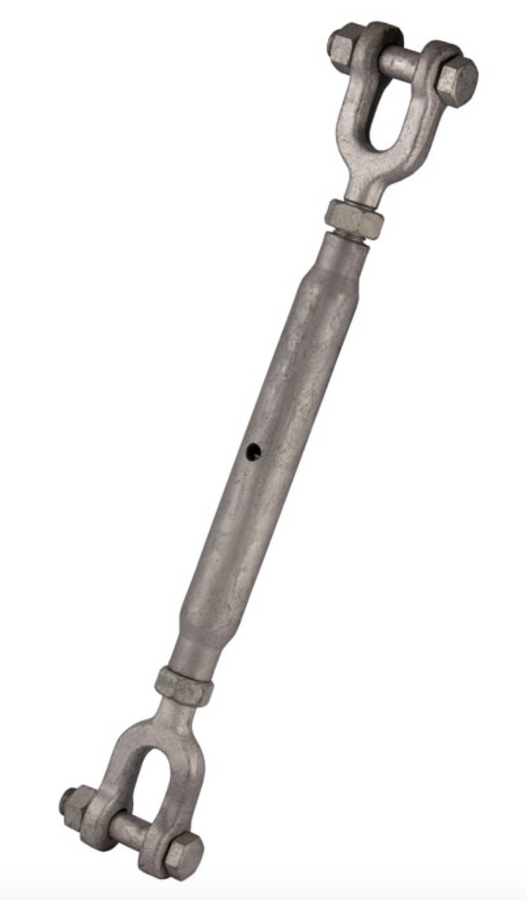

Closed Body Rigging Screw Jaw/Jaw

  • Mild steel.
  • Hot dipped galvanised finish.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • Metric Threads.
  • Marked with CE, W.L.L, manufacturers ID and traceability code.
  • Certification available DoC

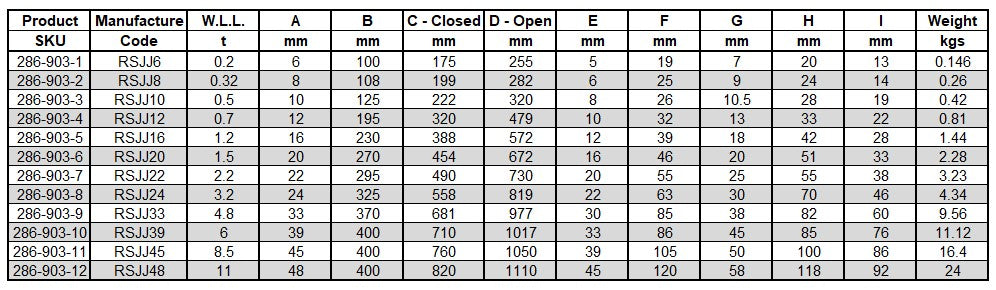

      Spec

      SKU

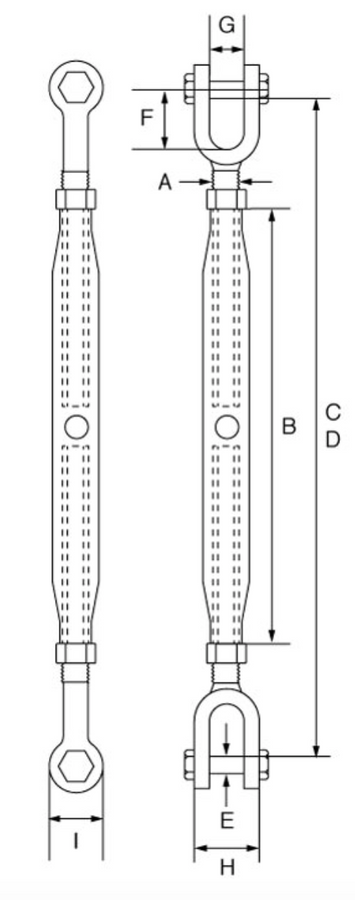

      		 W.L.L. A B C - Closed D - Open E F G H I Weight
      t mm mm mm mm mm mm mm mm mm kgs
      286-903-1
      		 0.2 6 100 175 255 5 19 7 20 13 0.146
      286-903-2
      		 0.32 8 108 199 282 6 25 9 24 14 0.26
      286-903-3
      		 0.5 10 125 222 320 8 26 10.5 28 19 0.42
      286-903-4
      		 0.7 12 195 320 479 10 32 13 33 22 0.81
      286-903-5
      		 1.2 16 230 388 572 12 39 18 42 28 1.44
      286-903-6
      		 1.5 20 270 454 672 16 46 20 51 33 2.28
      286-903-7
      		 2.2 22 295 490 730 20 55 25 55 38 3.23
      286-903-8
      		 3.2 24 325 558 819 22 63 30 70 46 4.34
      286-903-9
      		 4.8 33 370 681 977 30 85 38 82 60 9.56
      286-903-10
      		 6 39 400 710 1017 33 86 45 85 76 11.12
      286-903-11
      		 8.5 45 400 760 1050 39 105 50 100 86 16.4
      286-903-12
      		 11 48 400 820 1110 45 120 58 118 92 24
