Closed Body Rigging Screw Jaw/Eye

by GT
SKU 286-905-1
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
7 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
Out of stock
Availability:
Out of stock
Original price $0.00 - Original price $178.00
Original price
$5.00
$0.00 - $178.00
Current price $5.00
Inc Vat
Diameter/W.L.L.: 6mm / 0.2t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

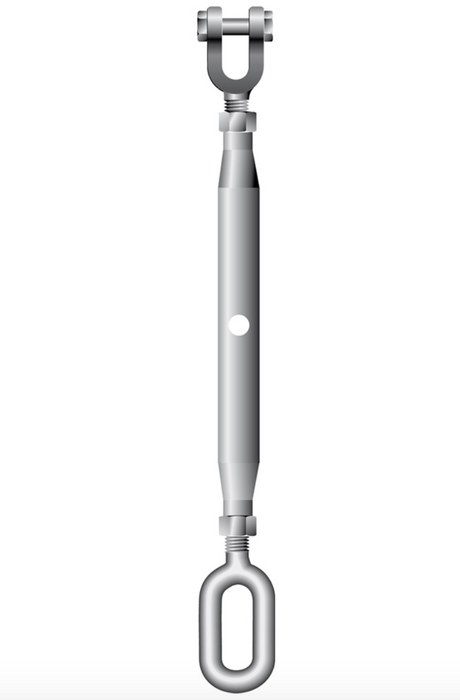

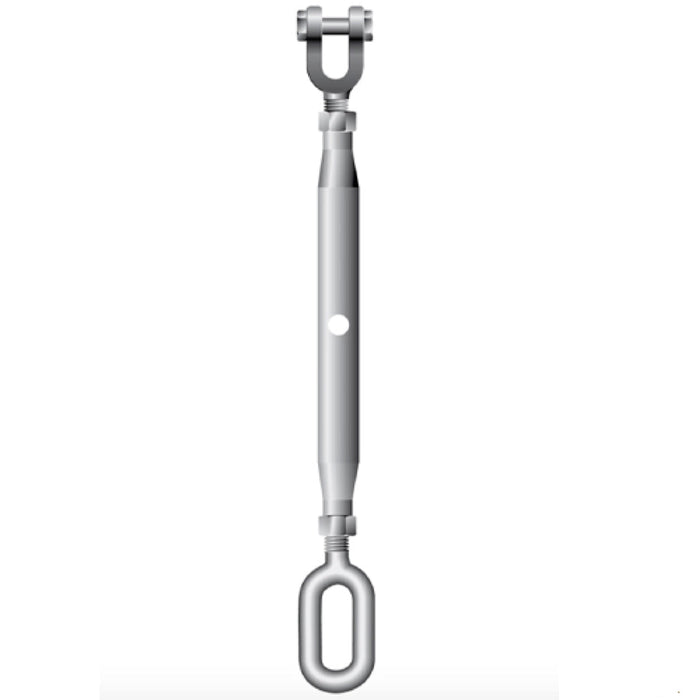

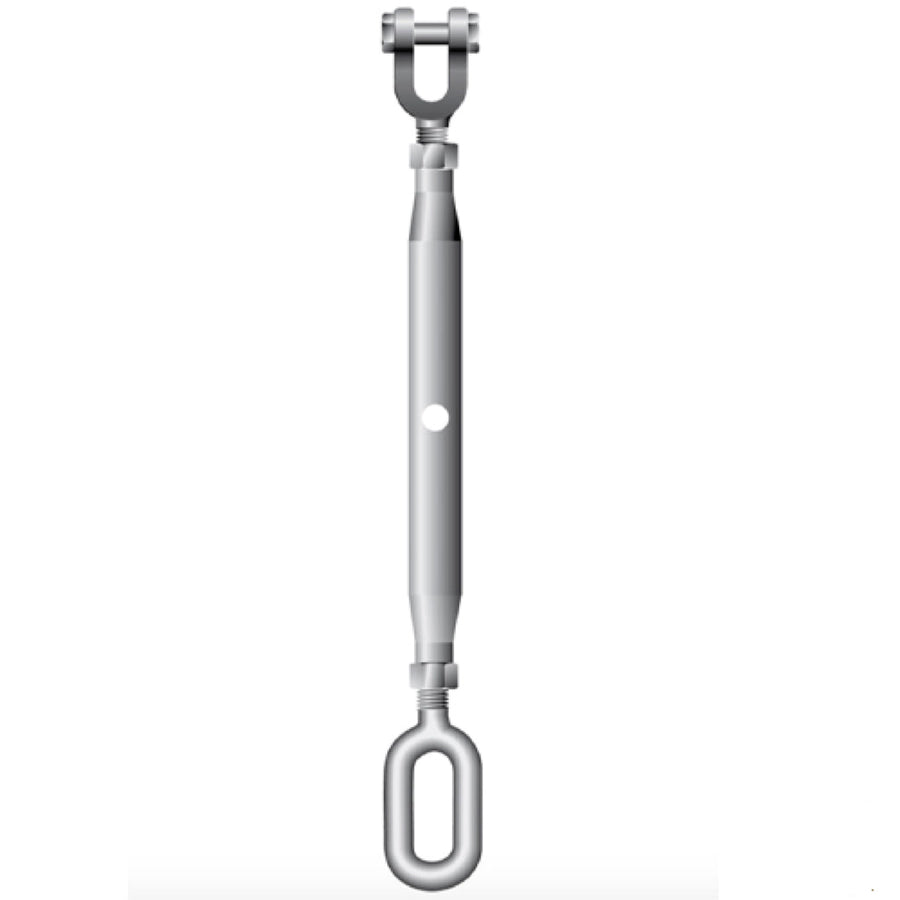

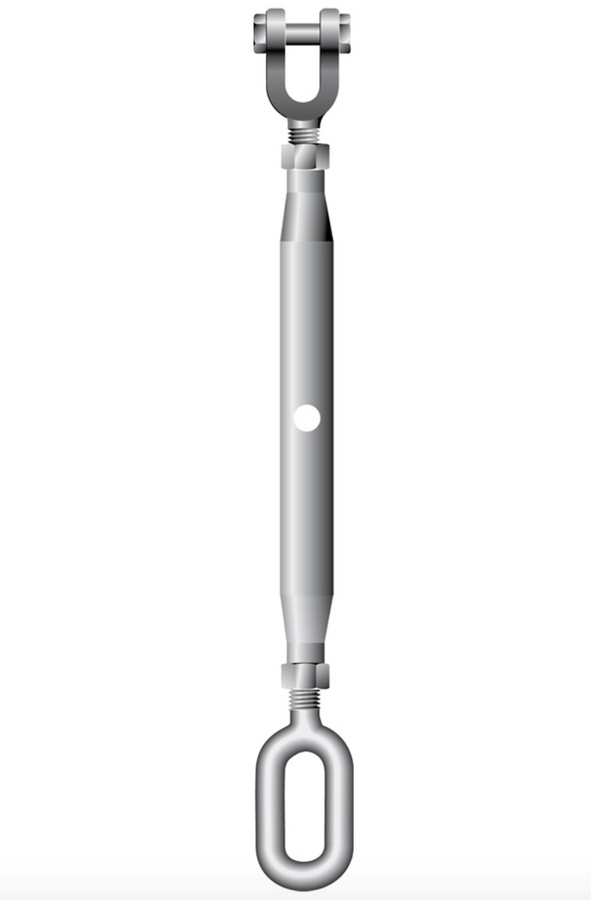

Closed Body Rigging Screw Jaw/Eye

  • Mild steel.
  • Hot dipped galvanised finish.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • Metric Threads.
  • Marked with CE, W.L.L, manufacturers ID and traceability code.
  • Certification available  DoC

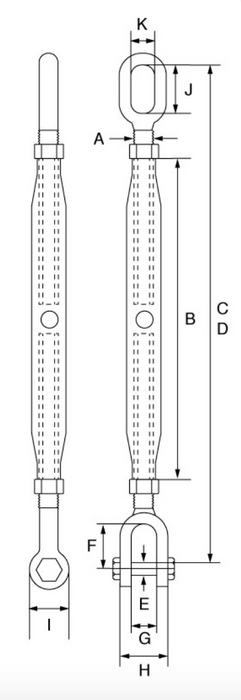

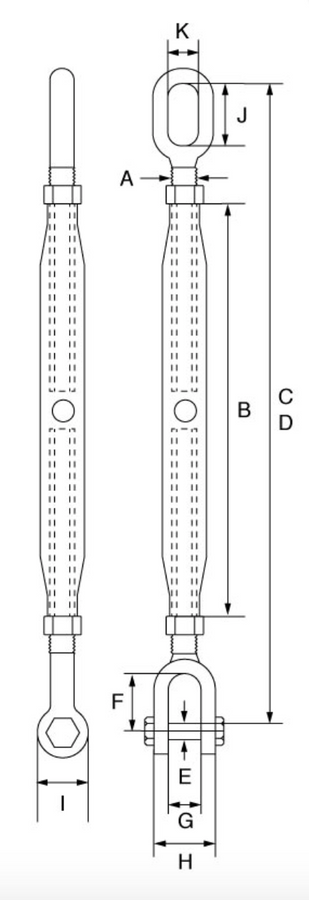

          Spec

          SKU W.L.L. A B C D E F G H I J K Weight
          t mm mm mm mm mm mm mm mm mm mm mm kgs
          296-905-1 0.2 6 100 170 248 M5 19 7 20 13 11 11 0.132
          296-905-2 0.32 8 108 189 273 M6 25 9 24 14 12 12 0.23
          296-905-3 0.5 10 125 216 306 M8 26 10.5 28 19 13 13 0.38
          296-905-4 0.7 12 195 323 478 M10 32 13 34 22 30 15 0.78
          296-905-5 1.2 16 230 384 569 M12 39 18 42 28 40 20 1.36
          296-905-6 1.5 20 270 455 665 M16 46 20 51 33 50 24 2.33
          296-905-7 2.2 22 295 493 723 M20 55 25 55 38 50 24 3.01
          296-905-8 3.2 24 325 552 802 M22 63 30 70 46 56 28 4.1
          296-905-9 4.8 33 370 673 963 M30 85 38 82 60 70 35 9.23
          296-905-10 6 39 400 718 1018 M33 86 45 85 76 80 40 11.1
          296-905-11 8.5 45 400 760 1050 M39 105 50 100 86 90 45 20.8
          296-905-12 11 48 400 820 1110 M45 120 58 118 92 100 45 24
