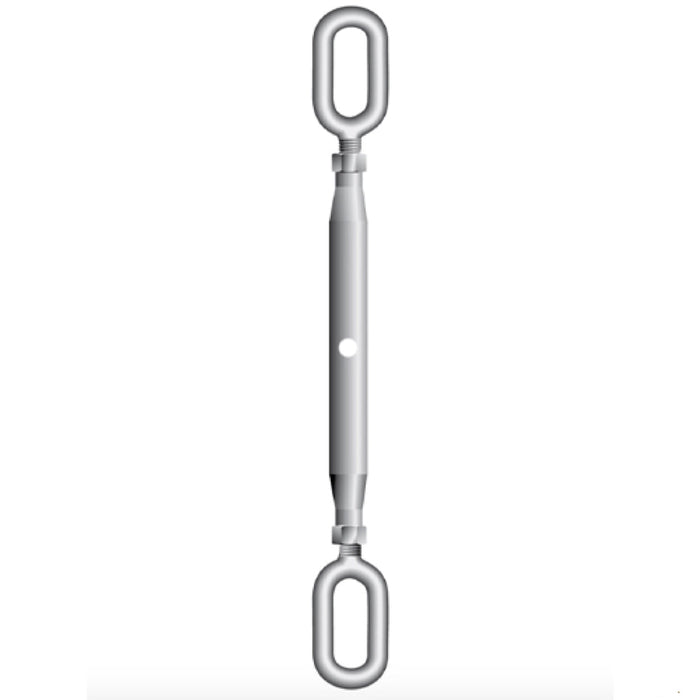

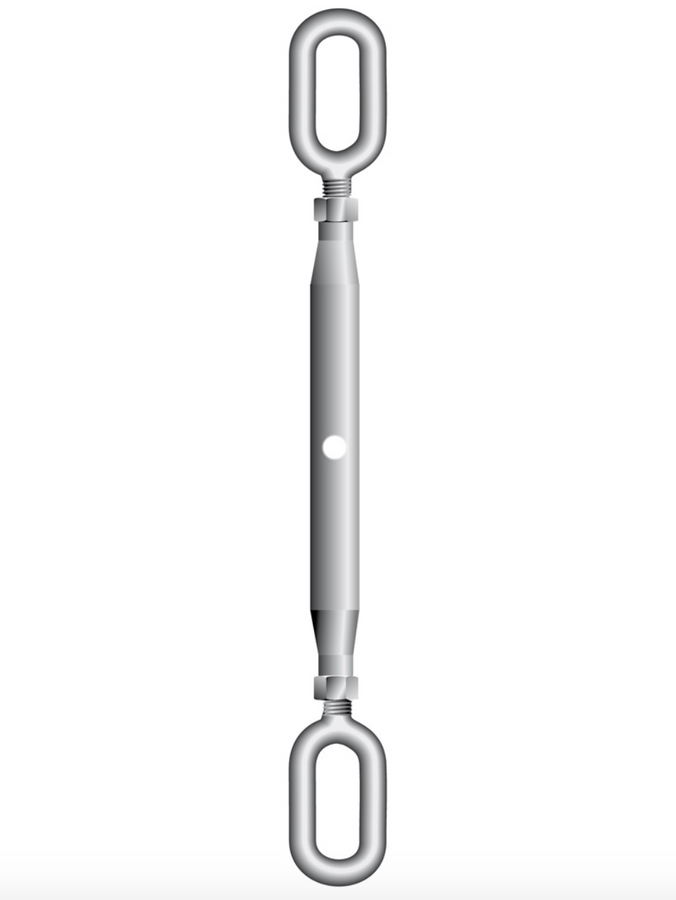

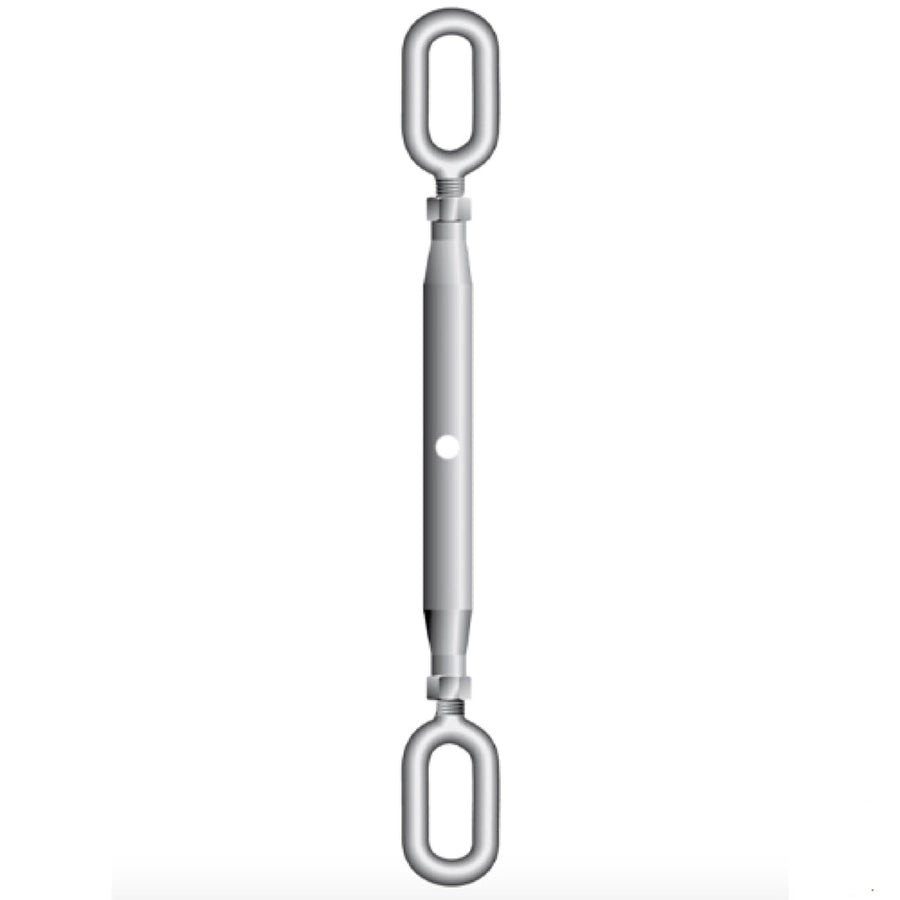

Closed Body Rigging Screw Eye/Eye

by GT
SKU 286-904-1
Availability:
12 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
18 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $0.00 - Original price $158.00
Original price
$5.00
$0.00 - $158.00
Current price $5.00
Inc Vat
Diameter/W.L.L.: 6mm / 0.2t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Closed Body Rigging Screw Eye/Eye

  • Mild steel.
  • Hot dipped galvanised finish.
  • Proof load tested to 2 times the W.L.L.
  • Minimum breaking load is 5 times the W.L.L.
  • Metric Threads.
  • Marked with CE, W.L.L, manufacturers ID and traceability code.
  • Certification available DoC

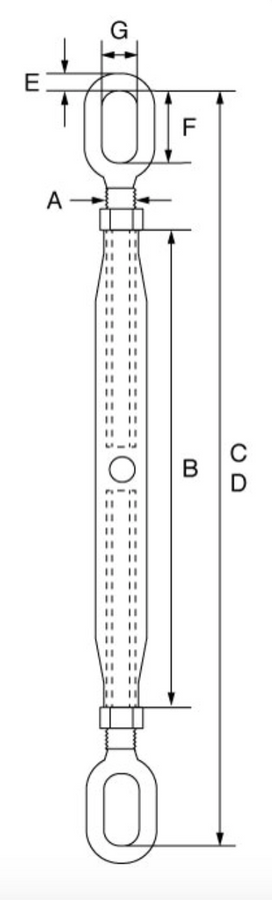

        Spec

        SKU W.L.L. A B C D E F G Weight
        t mm mm mm mm mm mm mm kgs
        286-904-1 0.2 6 100 165 245 5.5 11 11 0.118
        286-904-2 0.32 8 108 178 261 6 12 12 0.19
        286-904-3 0.5 10 125 210 308 8.5 13 13 0.34
        286-904-4 0.7 12 195 325 484 11 30 15 0.76
        286-904-5 1.2 16 230 380 564 12 40 20 1.29
        286-904-6 1.5 20 270 455 673 16 50 24 2.38
        286-904-7 2.2 22 295 495 736 16 50 24 2.8
        286-904-8 3.2 24 325 545 806 19 56 28 3.87
        286-904-9 4.8 33 370 665 961 29 70 35 8.9
        286-904-10 6 39 400 725 1032 34 80 40 11.08
        286-904-11 8.5 45 400 760 1050 30 90 45 16.4
        286-904-12 11 48 400 820 1110 35 100 45 23
