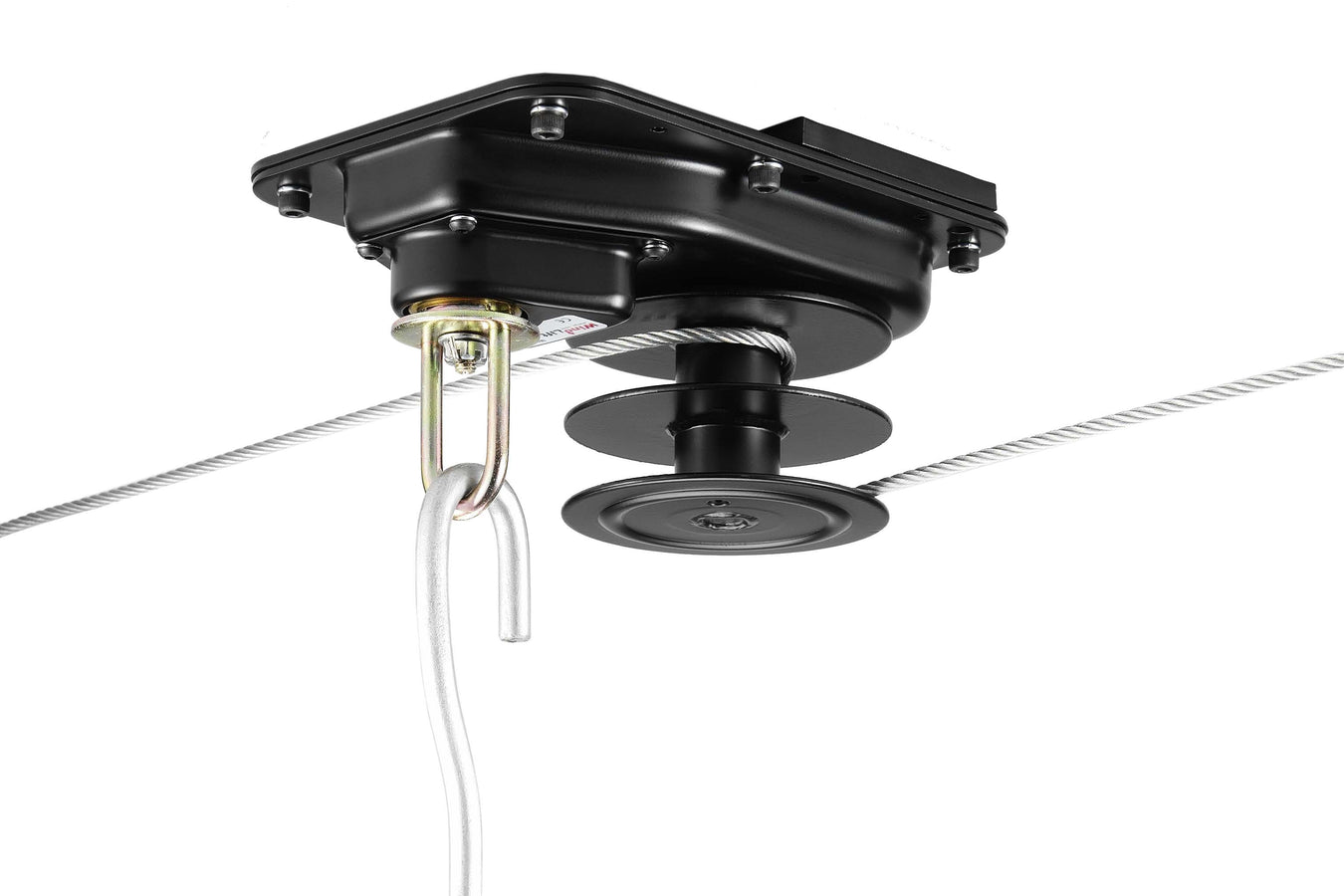

The Tiger ceiling mounted winch is an overhead lifting winch with a 2270kg (5000lb) capacity, built for fixed installation above the load. Its split reel design lets two cables be operated at the same time.
Tiger ceiling mounted winch for overhead lifting
Mounted overhead and operated from below, this ceiling winch for lifting uses a loop drive so it can be fitted out of reach and turned with an extension pole (not included). A positive load actuated brake holds the load securely in any position, making it a dependable overhead hand winch for repeated lifting and pulling.
-
Capacity: 5000lb/2270kg
-
Split Reel Design: Enables the operation of two cables simultaneously
-
Loop Drive: Allows the winch to be mounted out of reach and operated with an extension pole fitted to engage the loop ((extension pole not supplied, can be sourced from most local hardware stores).
-
Safety Feature: Positive load-actuated brake securely holds the load in any position
-
Protection: Fully covered gears and brake to shield against dust, dirt, and rain contamination
-
Ease of Use: Designed for low operator effort, ensuring smooth and easy operation
-
Typical Applications: Commonly used in poultry operations for reliable and efficient lifting and pulling tasks
Supplied without wire rope or webbing, this is available upon request to sales@winchshop.co.uk.
Specification

Technical Area
Data sheet
Rope and fitment

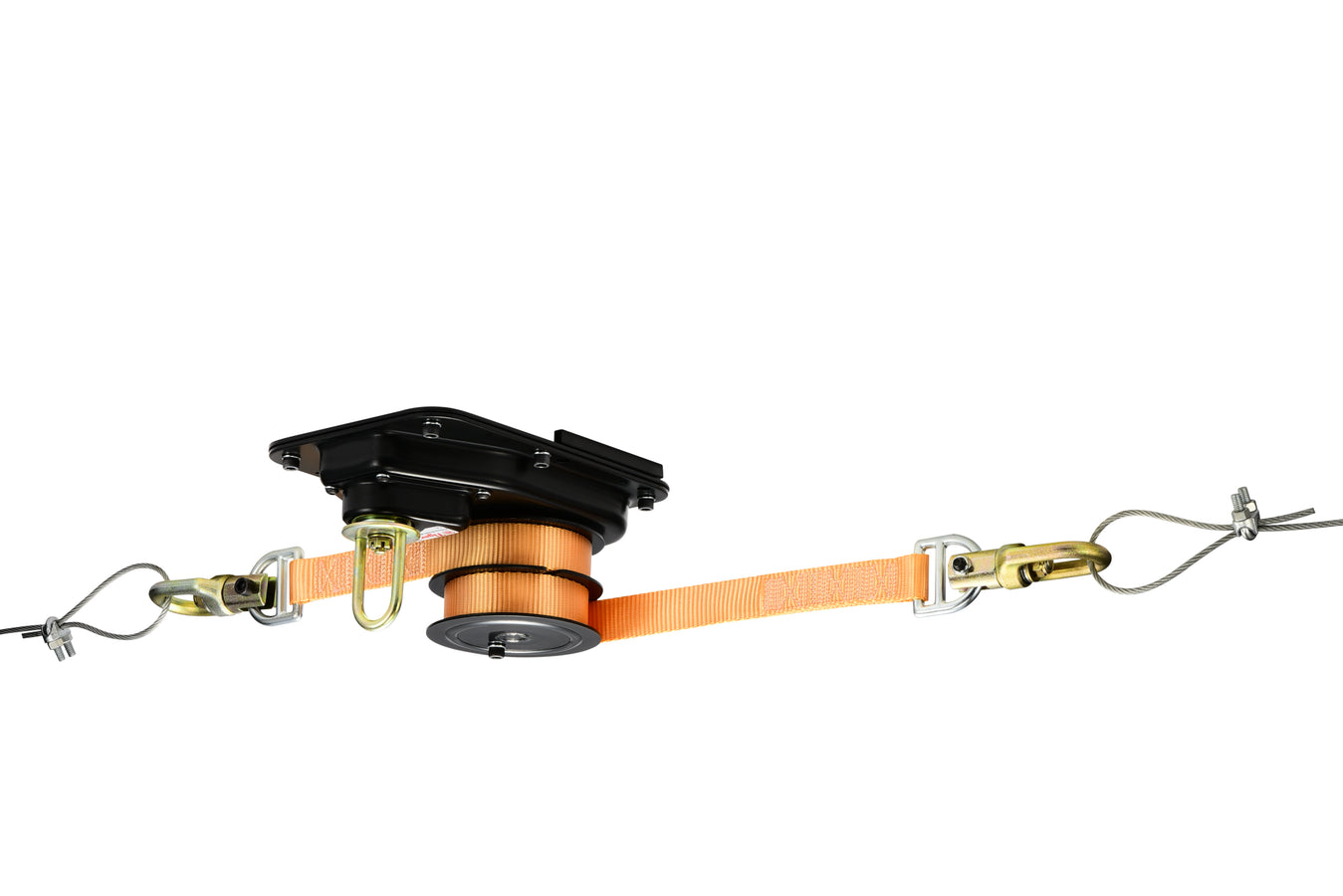

The winch is supplied without cable. Choose the wire rope option or add webbing strap to suit your application. See more models in our Tiger winches collection.
