Battery Drill Worm Gear Winch DW1000

by Gebuwin
£2,415.00

SKU :156-25-1

| Please select size required from box below |

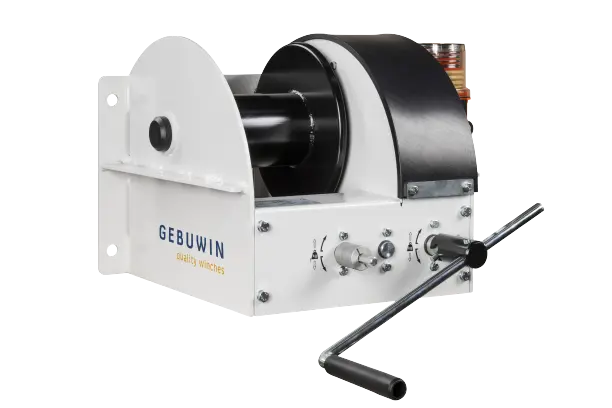

Battery Drill Worm Gear Winch DW1000

This worm gear winch can be controlled manually with a crank or with a cordless drill, ideal in situations where there is no electrical power available but you do not want to move the load manually.

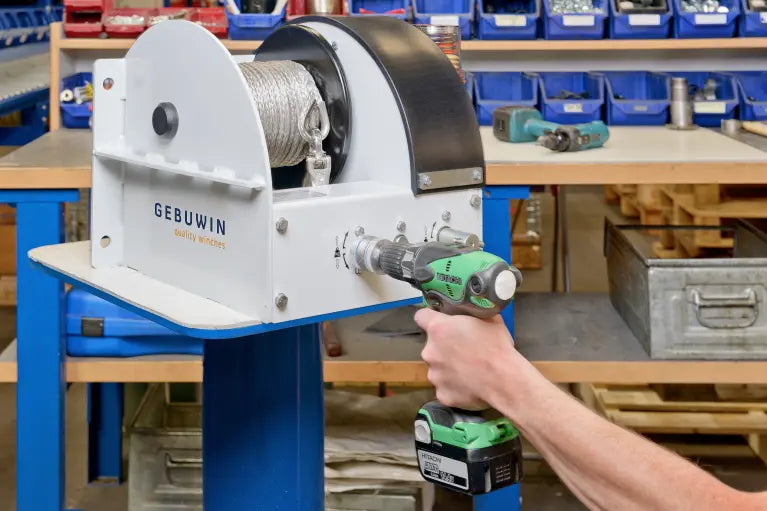

This winch offers the option of using the power and speed of a cordless drill instead.

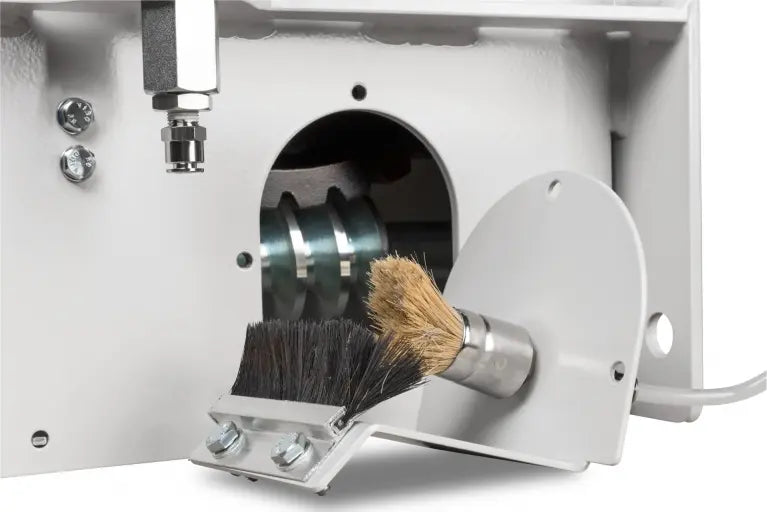

The winch is also equipped with an automatic grease lubrication system and a special flexible adaptor to absorb the use and the released vibrations of the cordless drill, making it very easy to use. A very beautiful winch and a lifesaver in situations when the power fails and you still want to move the load.

Spec

  • Robust and safe lifting and pulling winch in compliance with EN13157
  • Static safety factor 4
  • Right angled, easy to grease worm transmission and maintenance free bearings
  • Load pressure brake with double ratchet system for safe stable hold of the load in any position
  • Cable outlet upwards, downwards or at rear
  • Protection classification IP54

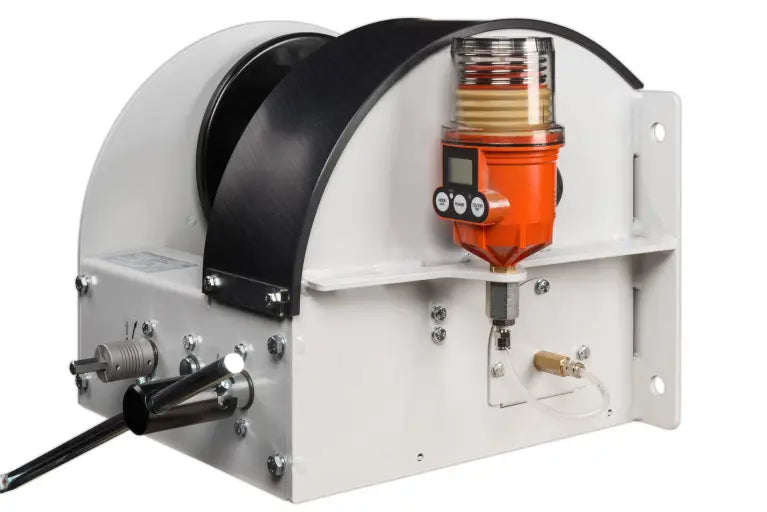

  • Automatic grease system for the worm gearing
  • Adjustable crank, with ergonomic grip
  • Drill and hand operated
  • Suitable for wall and floor mounting
  • Large rope capacity (73 metres)
  • Simple and quick attachment
  • Paint thickness is 60 – 80 micron in 1 layer and in compliance with DIN/ISO 12944, C1M – RAL 7035 (grey)
  • Corrosion resistant
Capacity 1st layer

1000 kg

Capacity 4th layer

725 kg

Capacity top layer

527 kg

Lifting speed

0,6 m/min

Rope diameter-Ø

8 mm

Rope storage 1st layer

5,5 meter

Rope storage 4th layer

29,2 meter

Rope storage top layer

73 meter

Lift per crank rotation

9 mm

Crank effort at full load

11 daN

Torque ingoing shaft

6 Nm

Max. input rotation speed drill

650 rpm

Weight (without rope)

39 kg

    Options

    • Zinc-plated finish
    • ATEX Certified
    • Floor mounting
    • Multiple cable drum compartments

      **As Standard supplied without Wire Rope - Prices available on request*

      Technical Info

      https://cdn.shopify.com/s/files/1/1563/3349/files/Product-sheet-DW1000.pdf?17336180789273260871Data sheet
