Battery Drill Driven Winch 200kg WA200

by Gebuwin
£684.00

SKU :156-27-1

| Please select size required from box below |

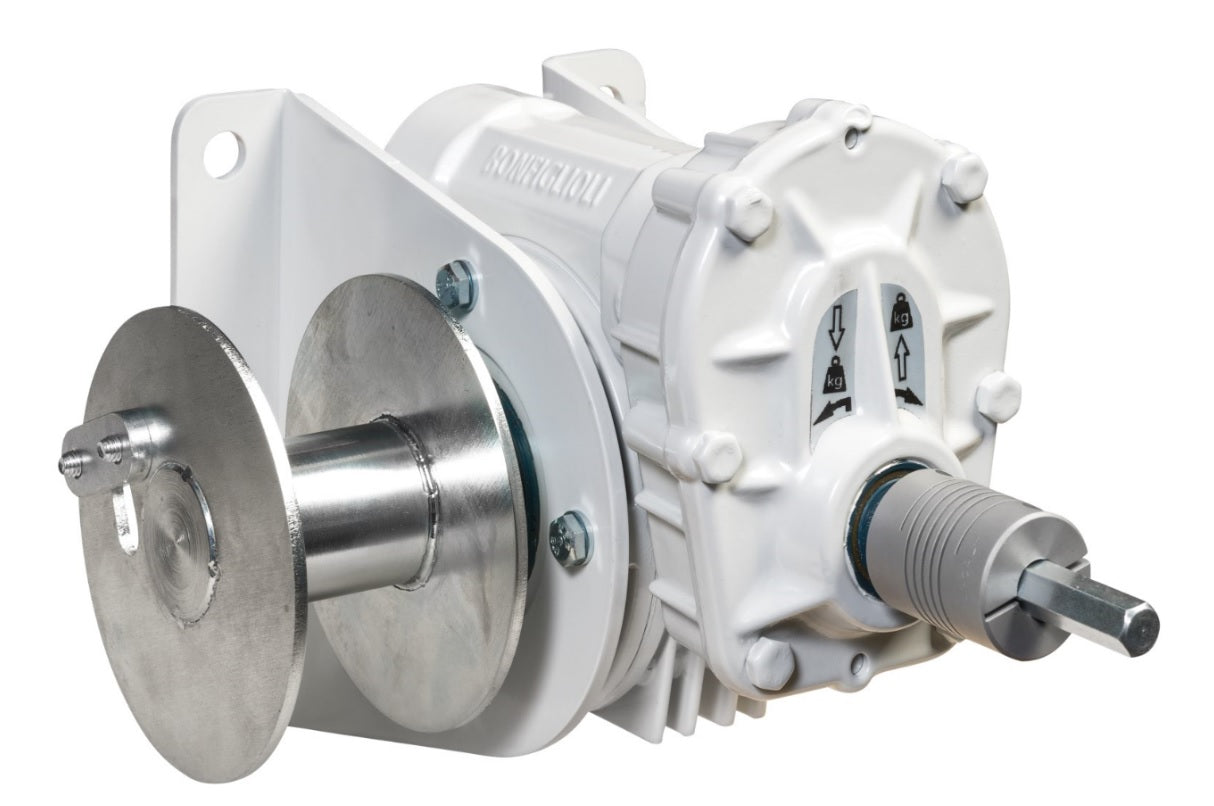

Battery Drill Driven Winch 200kg WA200

This battery drilling machine winch is ideal in situations where there is no power available but you do not want to move the load manually. This winch therefore uses the power and speed of a battery-powered drill.  The winch also has a closed gearbox and a special flexible adaptor to absorb the use and the released vibrations of the drilling machine, making the winch very easy to use. The winch is very compact and can be mounted both against the wall and on the floor. Ideal for smaller work.

Spec

  • Robust and safe lifting and pulling winch operated with battery drill
  • Static safety factor 4
  • Flexible coupling attachment for battery drill
  • Self braking worm gear system
  • Suitable for wall or floor (console) mounting
  • Suitable for short lifting lengths
  • Maintenance free aluminum closed gear box
  • In compliance with EN13157 and DIN 15020
  • Painted frame with thickness 60 – 80 micron in 1 layer (RAL 7035 – grey) and zinc-plated finished cable drum
Capacity 1st layer

200 kg

Capacity top (7th) layer

92 kg

Lifting speed

800 mm/min

Rope diameter-Ø

4 mm

Rope storage 1st layer

8 meter

Rope storage top layer

18 meter

Max. input rotation speed drill

1400 rpm

Weight (without rope)

6 kg

    Options

    • Floor mounting
    • ATEX certified

      **As Standard supplied without Wire Rope - Prices available on request*

      Video

      Technical Info

      https://cdn.shopify.com/s/files/1/1563/3349/files/Product-sheet-DW1000.pdf?17336180789273260871Data sheet
