AG100 - 100kg Hand Winch- Kits for - Clothes/Washing lines, Fitness Equipment, Chandeliers - plus many others

by ORPTECH
SKU 152-1-6A
Availability:
In stock
Availability:
In stock
Original price £234.84 - Original price £318.89
Original price
£234.84
£234.84 - £318.89
Current price £234.84

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

100kg Hand Winch Kits

Compromises;

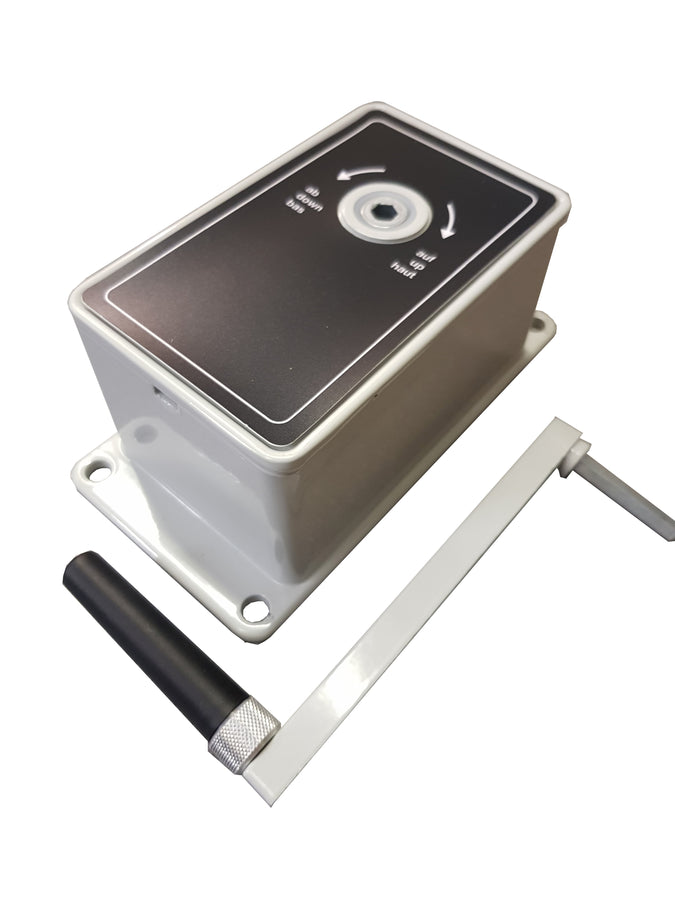

A 100kg hand operated winch (type AG100) designed for light duty application, for example - raising blinds, gym & fitness equipment, shutters, clothes lines, washing lines and chandeliers.

  • AG100 Hand Winch - Designed for light to medium duty applications and features:
  • Aluminium die-cast construction, corrosion resistant parts and powder coated paint finish
  • Spur gear manual cranking operation
  • Self locking brake for safety (load holds in place when user stops cranking handle)
  • Quiet running with low crank effort, removable crank and low weight

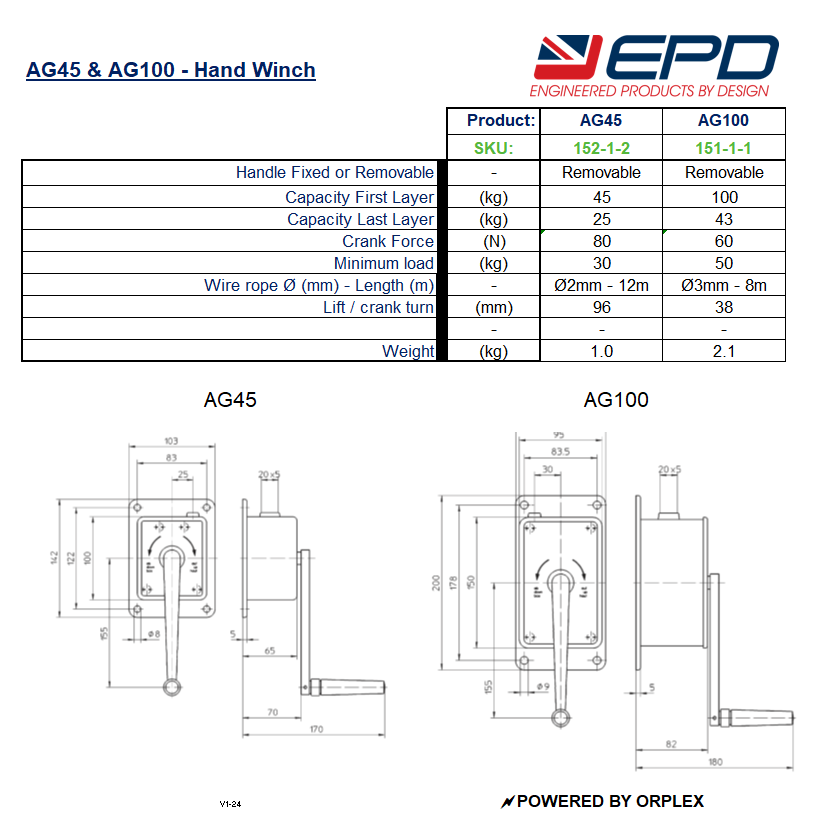

Specification

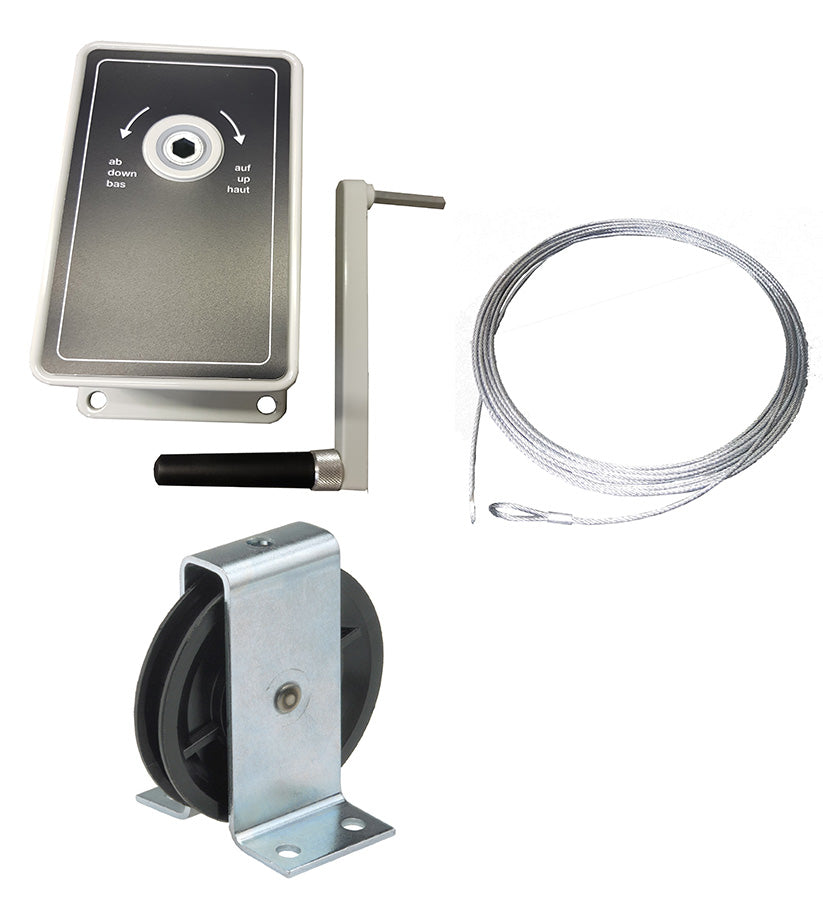

Kit A (152-1-6A) Winch comes with:

  • 1 x AG100 Winch with removable handle SWL 100kg
  • 1 x 3mm dia,10m Galv 7x19, wire rope - loop crimped with aluminium ferrule
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 1 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155.1.3 / 80mm Dia, 100kg - useful for diverting wire rope

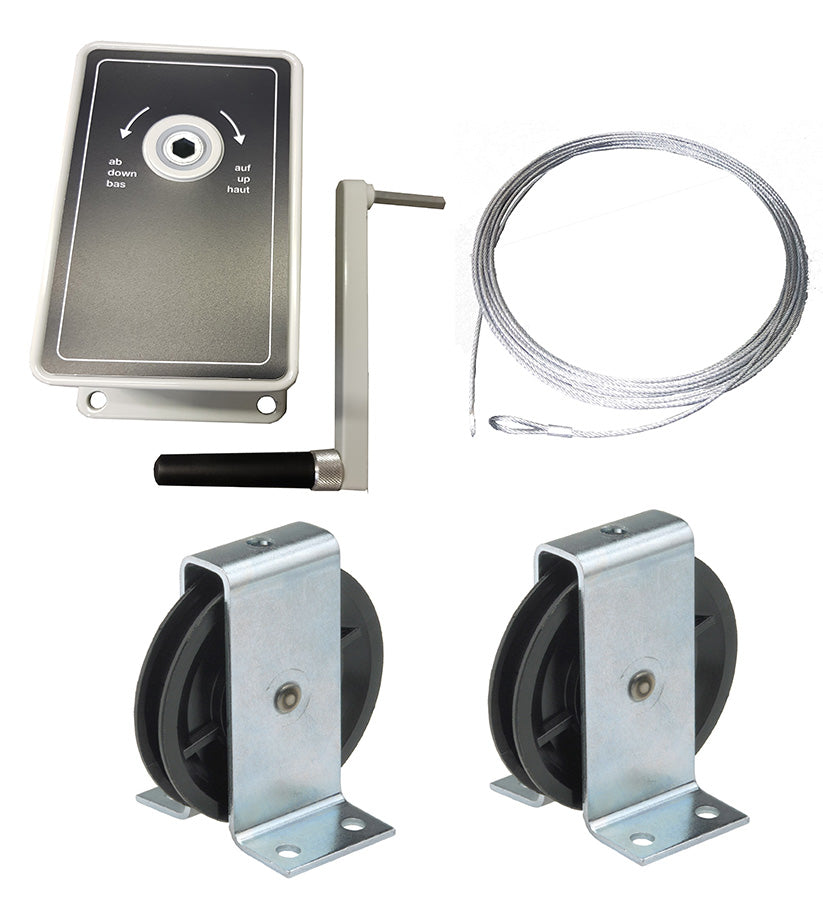

Kit B (152-1-7A) Winch comes with:

  • 1 x AG100 Winch with removable handle SWL 100kg
  • 1 x 3mm dia,10m Galv 7x19, wire rope - loop crimped with aluminium ferrule
NOTE - supplied loose, so assembly of wire rope to winch required on site
  • 2 x WEBI PULLEY TYPE ETT-116P - POLYMIDE PULLEY WITH BEARING & GALV BRACKET / 155.1.3 / 80mm Dia, 100kg - useful for diverting wire rope
