7500kg Worm Gear Hand Winch - WW7500

by Gebuwin
SKU 156-110-1
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Sold out
Original price £6,097.09 - Original price £6,796.37
Original price
£6,097.09
£6,097.09 - £6,796.37
Current price £6,097.09

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

Worm Gear Hand Winch 7500kg - WW7500

Gebuwin Winches

This worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage.

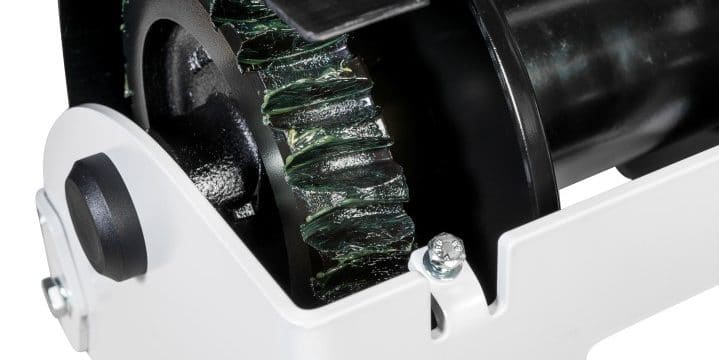

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

  • Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
  • Static safety factor 4
  • Right angled, easy to grease worm transmission and maintenance free bearings

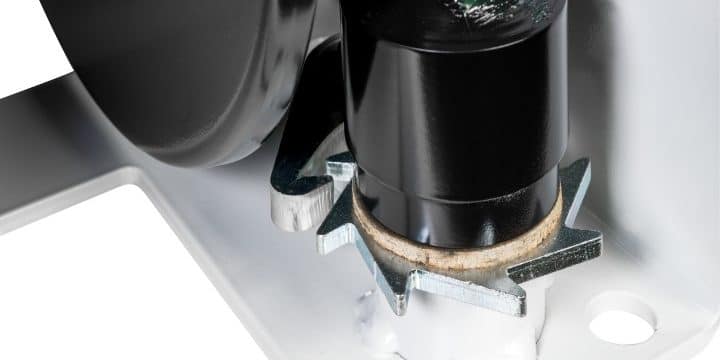

  • Load pressure brake with double ratchet system for safe stable hold of the load

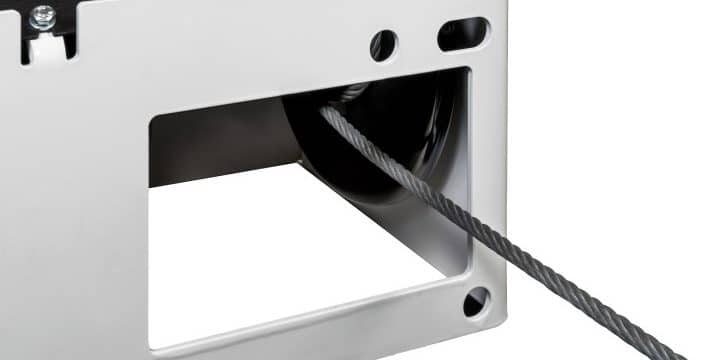

  • Cable outlet upwards, downwards or at rear
  • Adjustable crank, with ergonomic grip
  • Suitable for wall and floor mounting
  • Large rope capacity
  • Simple and quick attachment
  • Paint thickness 60 – 80 micron in 1 layer and in compliance with C1M – RAL7035 (grey)
  • Corrosion resistant
  • WW1000 and WW1500 are suitable for winch power tool AM5000
  • Gebuwin 77276200



** These variants may have some build lead time, clarification can be made via a sales team member HERE

Options

  1. GR = Standard model
  2. GD = Grooved cable drum
  3. EV = Zinc plated finish with a minimum of 6 micron
  4. EX = ATEX certified, for zones 2 and 22

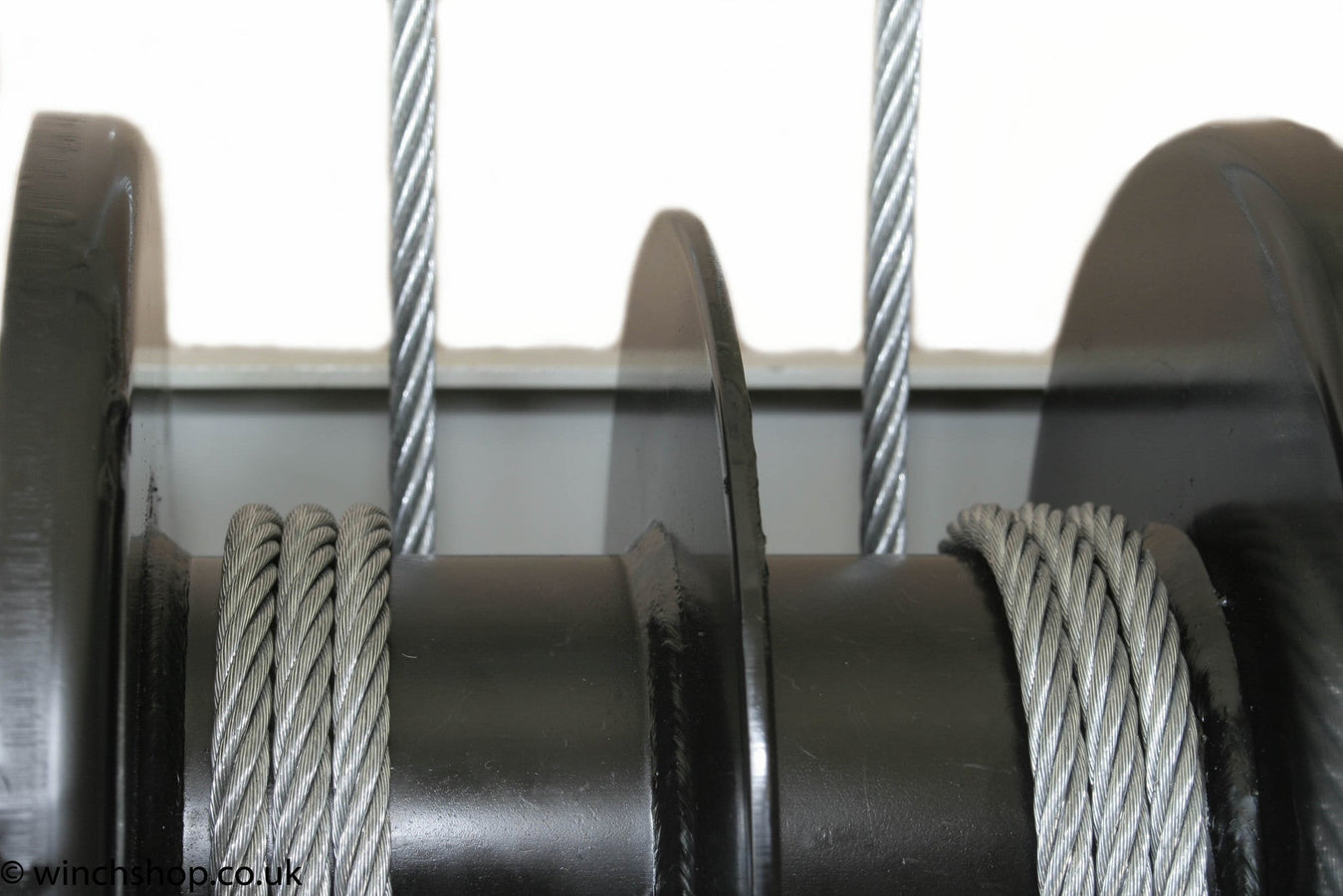

  5. 2D = Twin Drum

Related Products

  • Pulley options: LINK
  • Wire rope: LINK
  • Wire rope accessories: LINK
