500KG SWL PULLEY & BRACKET (205353) - 100mm ø - Rope ø 5-6.5mm - Sheave Zinc Plated - Bracket Steel Powder Coated Ref: 152-14

500KG SWL PULLEY & BRACKET (205353) - 100mm ø - Rope ø 5-6.5mm - Sheave Zinc Plated - Bracket Steel Powder Coated Ref: 152-14

by Haacon
£108.26

SKU :152-14-10

500KG SWL PULLEY & BRACKET (205353) - 100mm ø - Rope ø 5-6.5mm - Sheave Zinc Plated - Bracket Steel Powder Coated Ref: 152-14

Downloads:

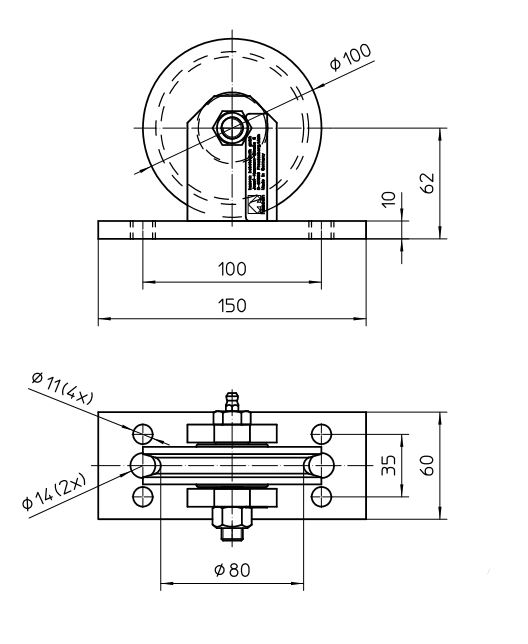

Drawing



Ref: 152.14.10

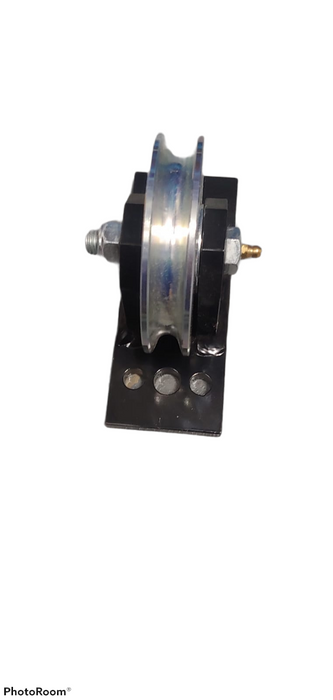

  • A 500 kg rope pulley complete with bracket.
  • Zinc plated pulley with steel powder coated bracket
  • Pulley Diameter: 100mm
  • For use with Rope Diameter ø 5 to 6.5mm

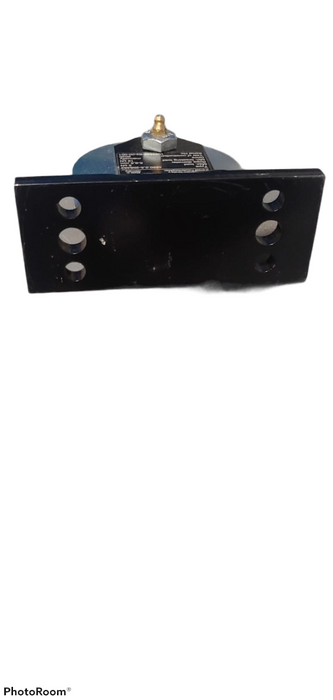

  • It has the 4 holes for mounting
  • Also two holes where the rope can go through the base plate vertically.
