5000kg Worm Gear Hand Winch - WW5000
Quantity Required Not In Stock or Need Help?
If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk
Worm Gear Hand Winch 5000kg - WW5000
![Gebuwin Winches](https://cdn.shopify.com/s/files/1/1563/3349/files/Gebuwin_logo_RGB_160x160.jpg?v=1669729824)
This worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage.
The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.
- Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
- Static safety factor 4
- Right angled, easy to grease worm transmission and maintenance free bearings
- Load pressure brake with double ratchet system for safe stable hold of the load
- Cable outlet upwards, downwards or at rear
- Adjustable crank, with ergonomic grip
- Suitable for wall and floor mounting
- Large rope capacity
- Simple and quick attachment
- Paint thickness 60 – 80 micron in 1 layer and in compliance with C1M – RAL7035 (grey)
- Corrosion resistant
- WW1000 and WW1500 are suitable for winch power tool AM5000
** Whilst we stock the standard "GR" model in the UK, some options / variants may have some build lead time, clarification can be made via a sales team member HERE
Options
- GR = Standard model
- GD = Grooved cable drum
- EV = Zinc plated finish with a minimum of 6 micron
- EX = ATEX certified, for zones 2 and 22

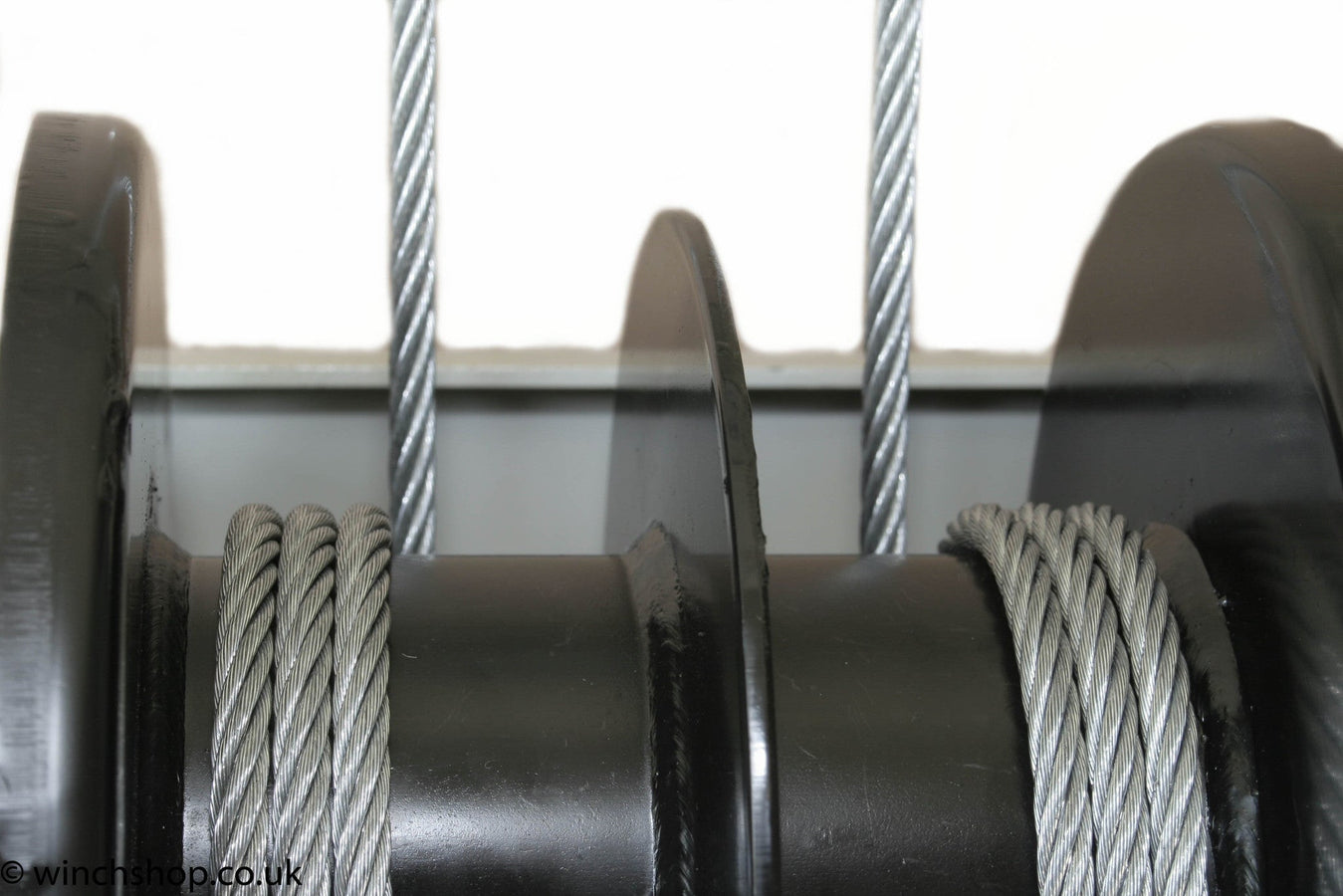

- 2D = Twin Drum
