4000kg Worm Gear Hand Winch - WW4000

Worm Gear Hand Winch 4000kg - WW4000

The Gebuwin 4000kg worm gear hand winch (WW4000) is a robust manual winch for lifting and pulling. Its worm gear transmission works with a load-pressure brake to hold the load safely at any height.

4000kg worm gear hand winch with self-locking brake

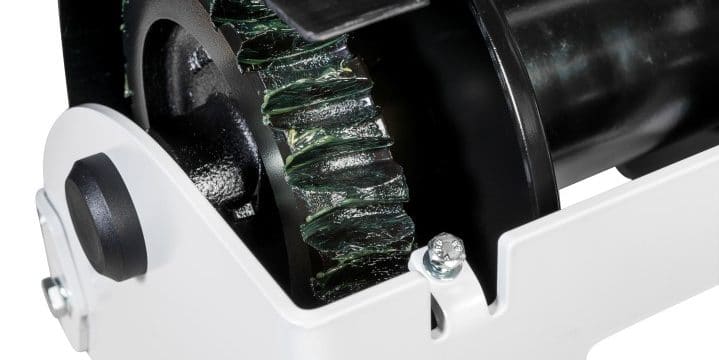

The worm shaft and wheel transmission provides 50% of the braking through friction loss, with the load-pressure brake giving the other 50%. This makes it a dependable self-locking hand winch that can be mounted in almost any position.

• 4000kg capacity manual worm gear hand winch

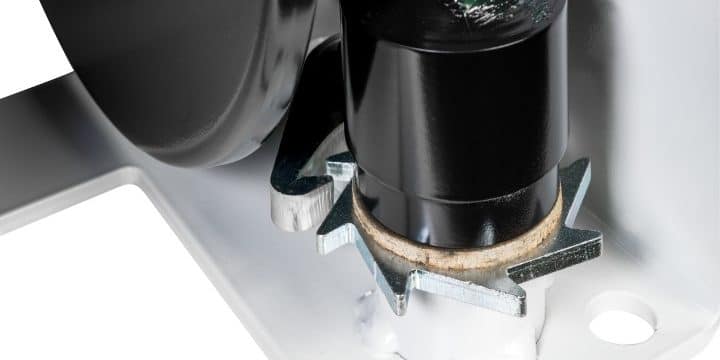

• Self-locking load-pressure brake with double ratchet for a stable hold

• Robust lifting and pulling winch, EN13157 hand winch compliant with DIN15020

• Static safety factor of 4

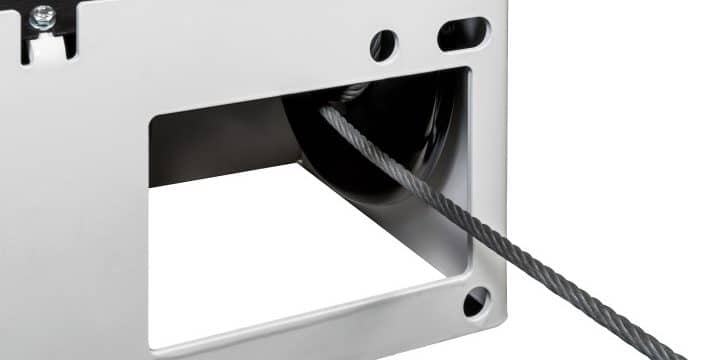

• Cable outlet upwards, downwards or at the rear

• Suitable for wall and floor mounting, large rope capacity

• Adjustable crank with ergonomic grip, maintenance-free bearings

• Grey paint finish 60 to 80 micron, corrosion resistant

• Model options: standard, grooved drum, zinc plated, ATEX certified or twin drum

Pair it with wire rope and pulleys to complete your lifting setup.

** These variants may have some build lead time, clarification can be made via a sales team member HERE

Options

1. GR = Standard model
2. GD = Grooved cable drum
3. EV = Zinc plated finish with a minimum of 6 micron
4. EX = ATEX certified, for zones 2 and 22

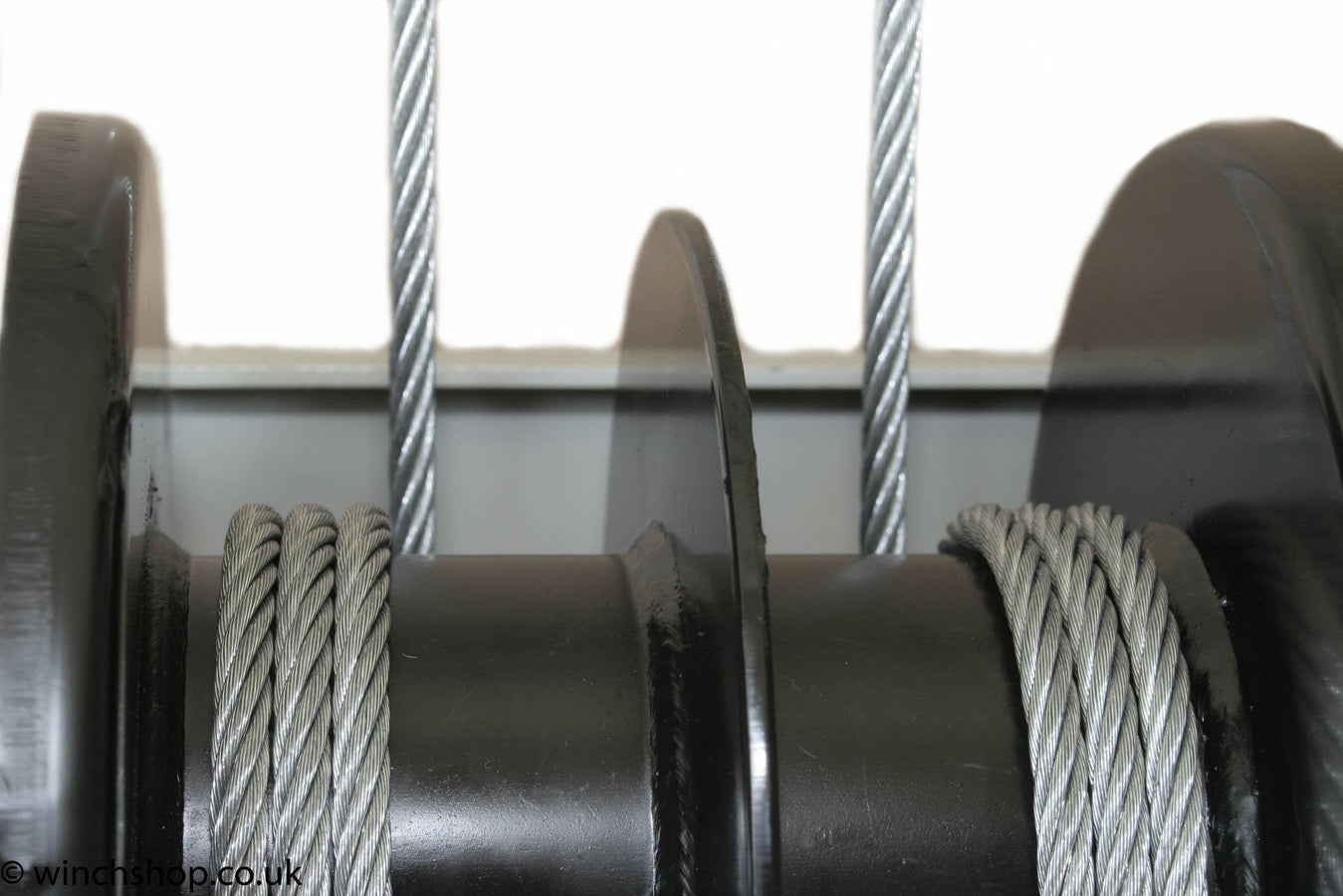

5. 2D = Twin Drum
