230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

230v Capstan Winch CW 800 E Including Steel Trolley Mounting Rail And Strap - Max Pulling Force 800kg

by RUNPOTEC
SKU 123-1-48
£2,502.90 - £2,502.90
£2,502.90
£2,502.90 - £2,502.90
£2,502.90

Delivery Lead-Time from Order

The current lead-time for this product if not in stock in our warehouse can vary from 3 to 4 weeks.

If you would like a formal quotation including lead-time from order date please email sales@winchshop.co.uk detailing the product required, quantity and full billing and shipping address.

If you are happy to go ahead with a 3 to 4 week lead-time please pre-order online and we will confirm order details by email after you have ordered.

Description

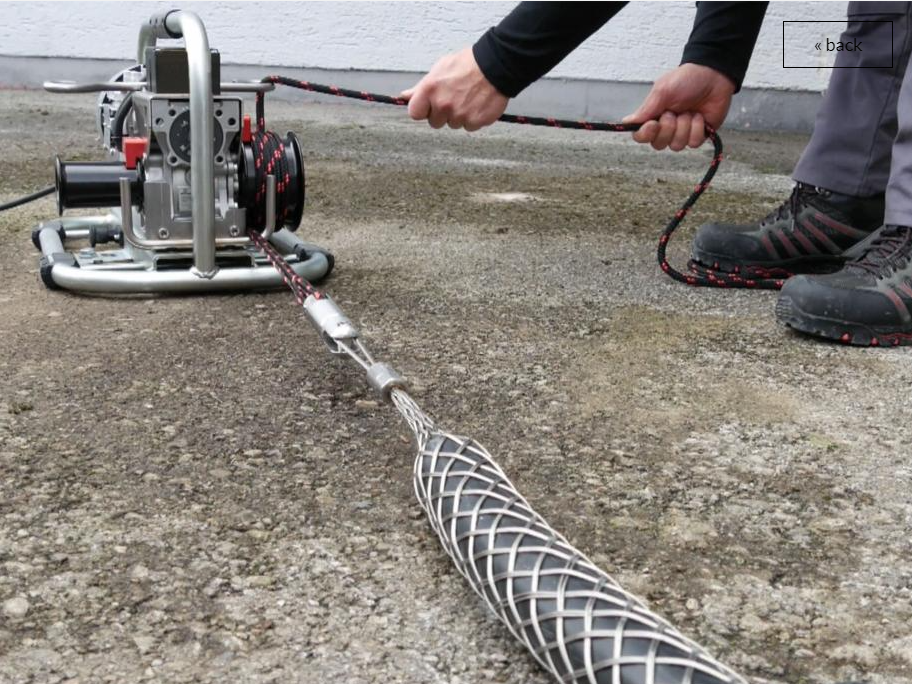

The CW800 is a capstan winch, ideally suited for horizontal pulling of one or more cables. Where several persons are often needed for pulling higher cable loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800kg or 400kg in capacity.

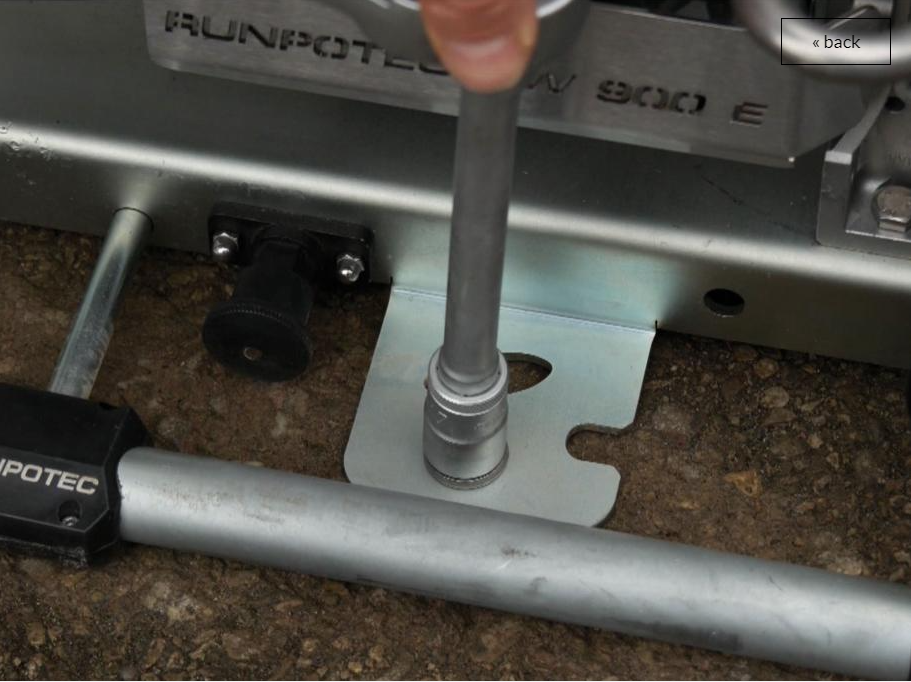

The capstan winch can be fixed via the mounting holes or attached to solid objects with the strap included. The trolley mounting rail also offers a very practical fastening (securing) option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E capstan winch and fasten it using the two fixing bolts.

NOTE - THIS PRODUCT HAS A LEADTIME OF 3 TO 5 WEEKS FROM ORDER IF OUT OF STOCK

RUNPOTEC recommends the use of Ø 10 mm diameter polyester for the pulling rope for this winch as this has the ideal wrap factor.

Safety instructions:
Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.

Optimal area of application: for horizontal cable pulling.
Application video: A short, very informative application video can be viewed by scanning the QR code or on www.runpotec.com.
Scope of delivery: capstan winch CW 800 E including trolley mounting rail and securing strap.

Advantages:

  • One person can pull up to 800 kg with the CW 800 E capstan winch
  • Selectable traction force or traction speed 800 kg | 400 kg
  • Small, compact, handy
  • Many mounting options
  • Safety rope guide
  • Overload protection

Specification:

Dimensions: L 1000 x B 370 x H 330 mm
Weight: 41.20kg
Strap length: 3 Meter
Motor connection: 230 V / 50 Hz
Motor drive power: 0,75 KWh / 5,1 A
Motor speed: 1400 U / min
Capstan (Small) Pulling force: up to 800 kg at 4m per min.
Capstan (Large) Pulling force: up to 400 kg at 8m per min.
EAN-Code: 9120045475630
