2000kg Worm Gear Hand Winch - WW2000

2000kg Worm Gear Hand Winch - WW2000

2000kg worm gear hand winch from Gebuwin, model WW2000, a self-locking manual winch that lifts and pulls and holds the load at any height. Mount it in any position with space for large cable storage.

2000kg worm gear hand winch features

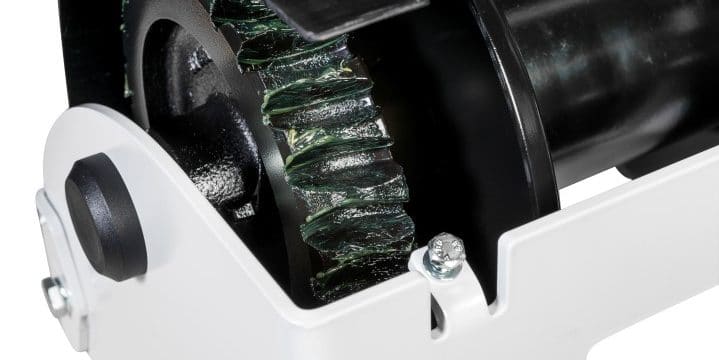

The worm gear transmission pairs with a load-pressure brake so this 2t hand winch holds a stable load, working as a self-locking hand winch and a braked hand winch for lifting.

Specifications

• Manual worm gear hand winch, 2000kg capacity

• Complies with EN13157 and DIN15020, static safety factor 4

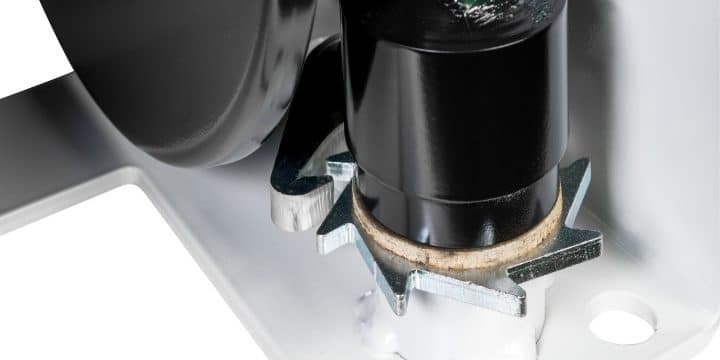

• Load-pressure brake with double ratchet for a safe, stable hold

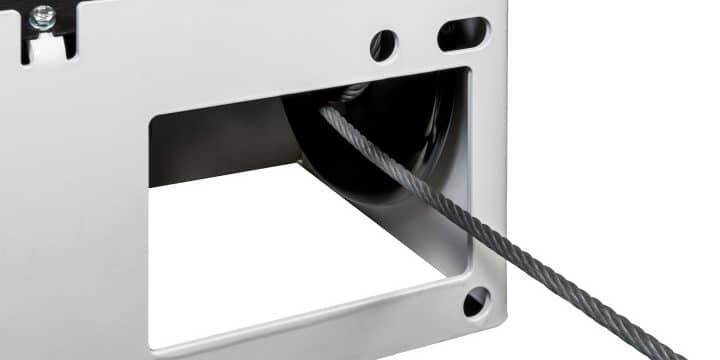

• Cable outlet upwards, downwards or at the rear

• Adjustable crank with ergonomic grip

• Suitable for wall and floor mounting

• Painted grey finish, 60 to 80 micron, corrosion resistant

• Standard (GR), grooved drum (GD), twin drum (2D), zinc plated (EV) and ATEX (EX) options

** These variants may have some build lead time, clarification can be made via a sales team member HERE

Options and accessories

Add wire rope, pulleys or wire rope accessories to suit this Gebuwin worm gear winch for hoisting and pulling.

Options

1. GR = Standard model
2. GD = Grooved cable drum
3. EV = Zinc plated finish with a minimum of 6 micron
4. EX = ATEX certified, for zones 2 and 22

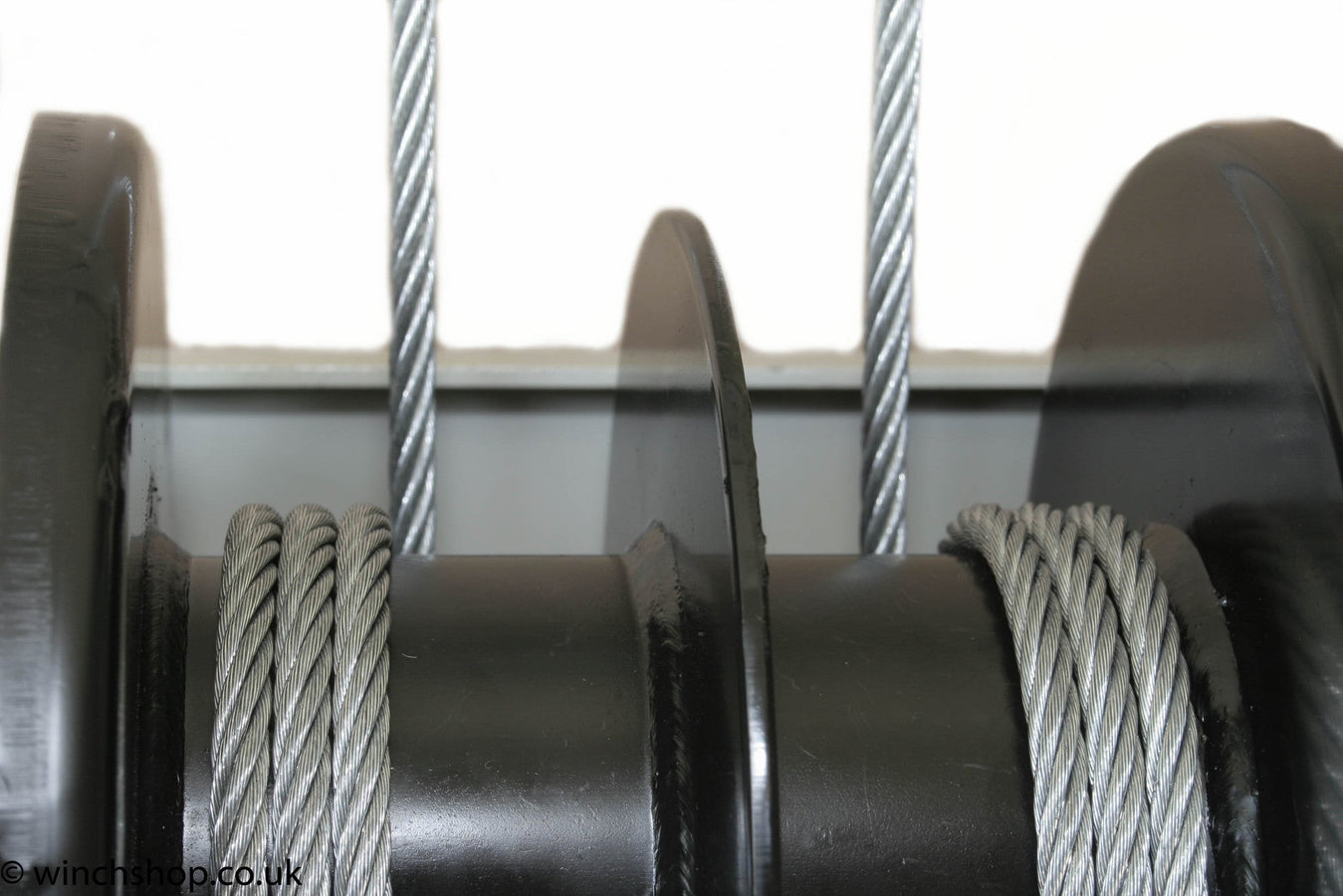

5. 2D = Twin Drum
