200-250kg WEBI Pulley Type ETT-202 - Construction Site Pulley with Rotating Steel Hook for Scaffolding

SKU 155-23-1
Availability:
2 in stock, ready to be shipped
Availability:
Only 1 left!
Original price $82.00 - Original price $108.00
Original price
$82.00
$82.00 - $108.00
Current price $82.00
Inc Vat
SELECTED:: 200 kg - Pulley Ø140mm - Max Rope Ø16-20mm

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

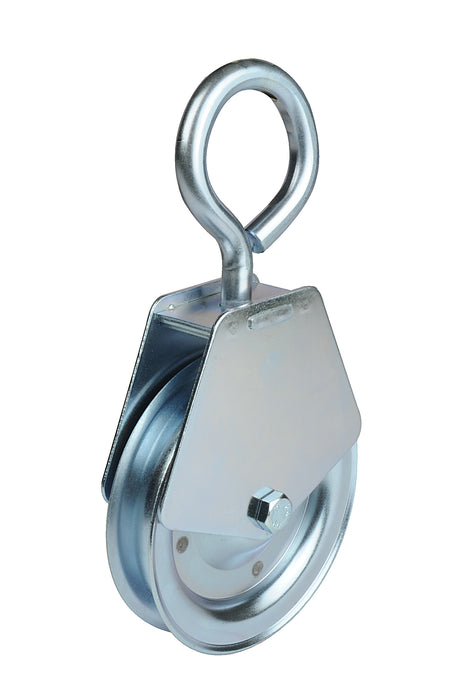

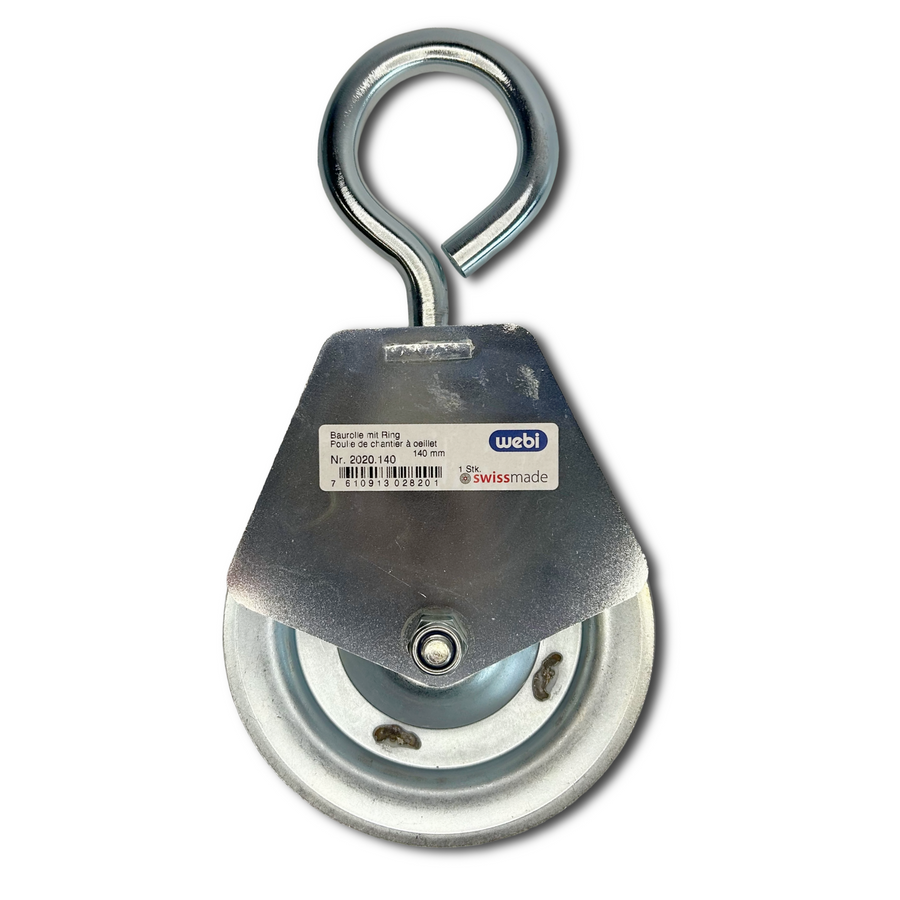

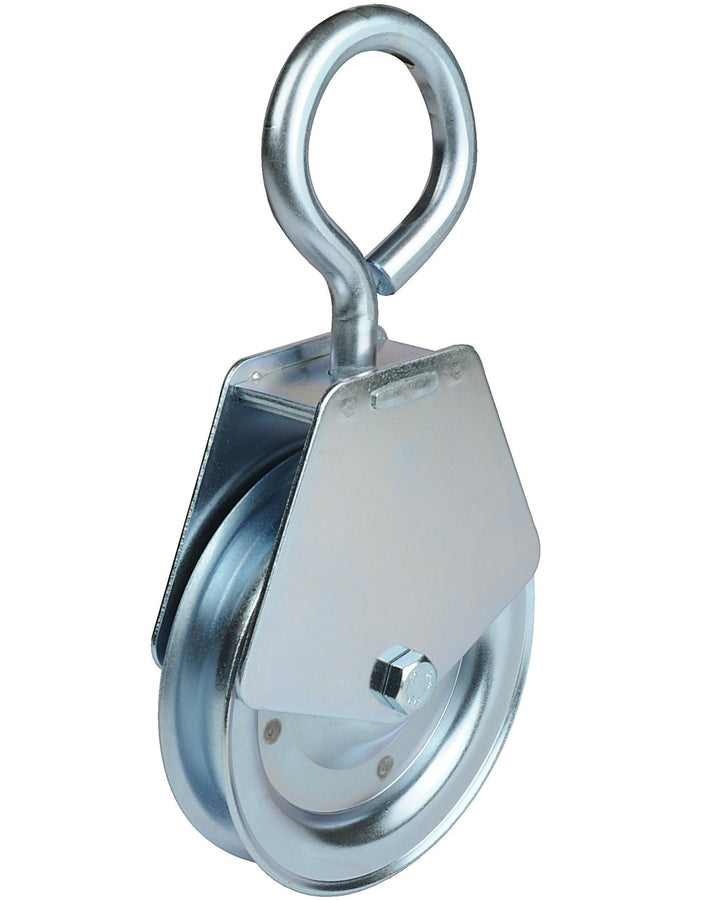

WEBI Pulley Type ETT-202 - Construction Site Pulley with Rotating Steel Hook for Scaffolding (ETTER)

  • WEBI steel pulley / sheave with rotating hook for construction site, for use on scaffolding up to 49mm (1 1/2") diameter
  • Plain bearing
  • Material finish steel pulley with galvanised steel housing, steel hook with security spring
  • Hook load capacities 140 kg and 200 kg (manual operation only)
  • Width of groove on pulley to suit 16-20 mm or 20-25 mm rope (see specification PDF for full details)
  • For use with hemp and synthetic fibre ropes
  • SWISS MANUFACTURED

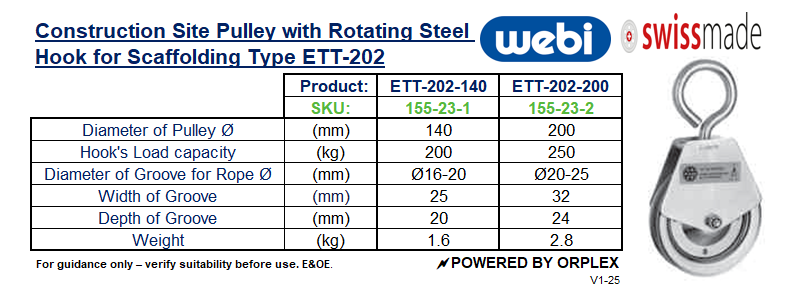

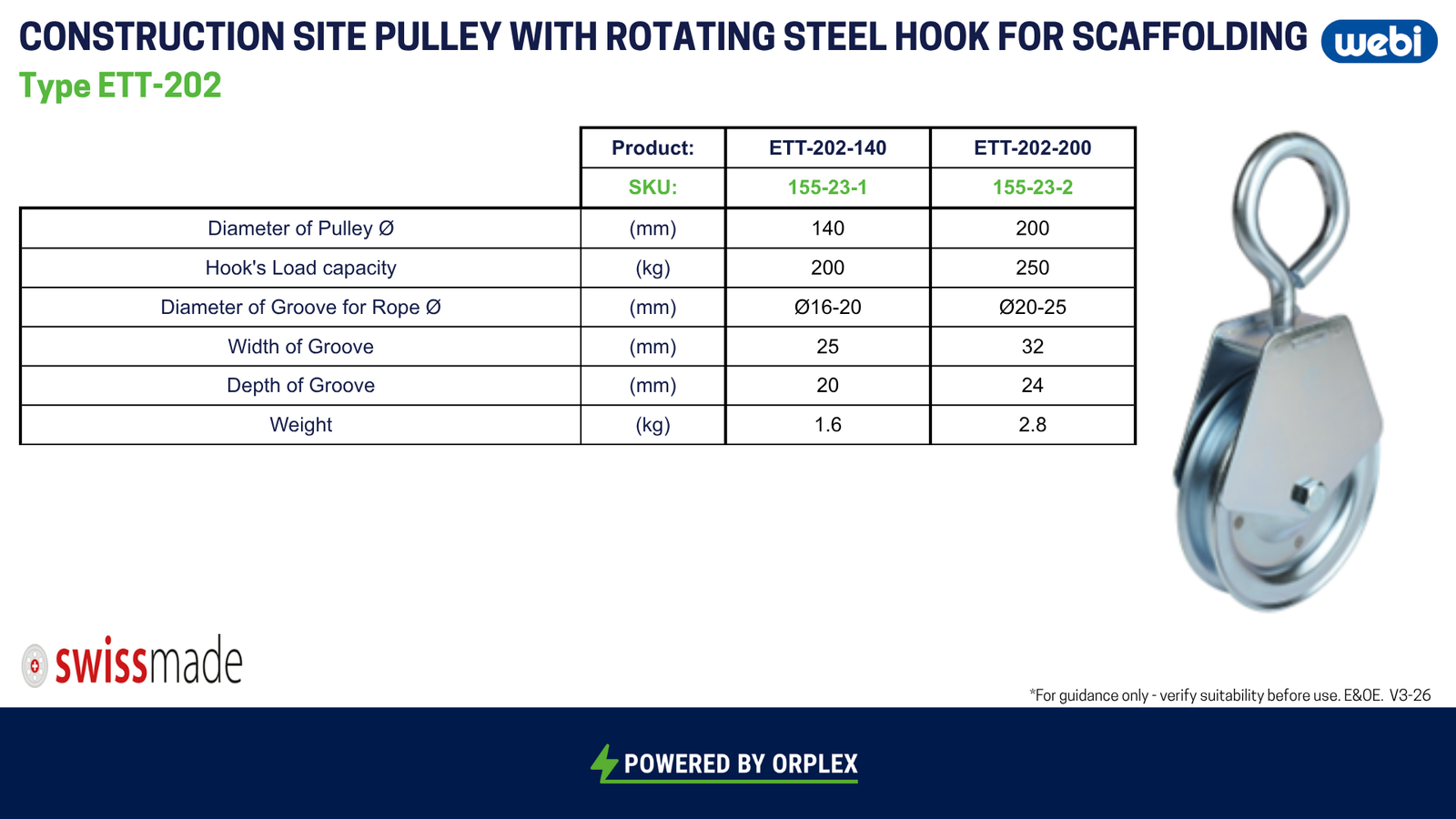

Spec

Model Capacity Pulley Diameter Rope Diameter
155-23-1 200 kg 140 mm 16-20 mm
155-23-2 250 kg 200 mm 20-25 mm

    Technical Info

    PulleyPulley Cat 2018

    PulleyEtter 202 Pulley Data Sheet
