1500kg Worm Gear Hand Winch - WW1500

by Gebuwin
SKU 156-104-1
Only 1 left!
Out of stock
Out of stock
Out of stock
Out of stock
Original price £1,099.63 - Original price £1,397.46
Original price
£1,099.63 - £1,397.46
Current price £1,099.63

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to

Worm Gear Hand Winch 1500kg - WW1500

Gebuwin Winches

This small worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage.

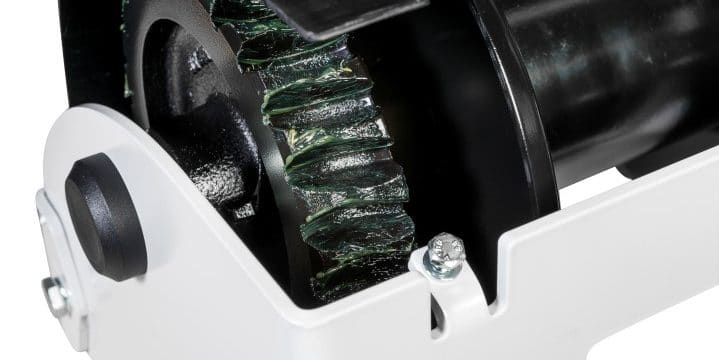

The Gebuwin worm gear hand winch has a transmission that consists of a worm shaft and wheel. Due to the fact that this transmission causes friction loss it also provides 50% of the braking system. The load pressure brake provides the other 50%. The combination of the braking system and robust design results in a very safe hoisting and pulling winch.

  • Robust and safe lifting and pulling winch in compliance with EN13157, DIN 15020
  • Static safety factor 4
  • Right angled, easy to grease worm transmission and maintenance free bearings

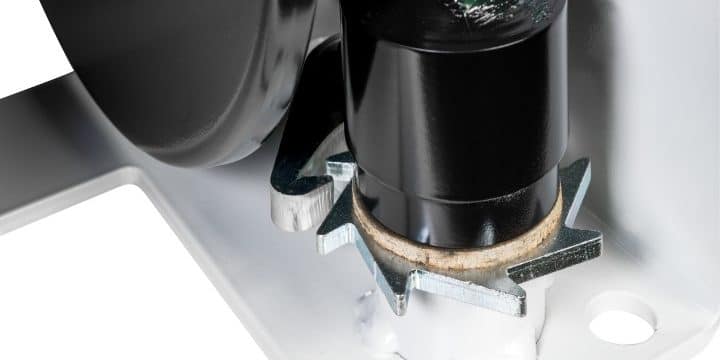

  • Load pressure brake with double ratchet system for safe stable hold of the load

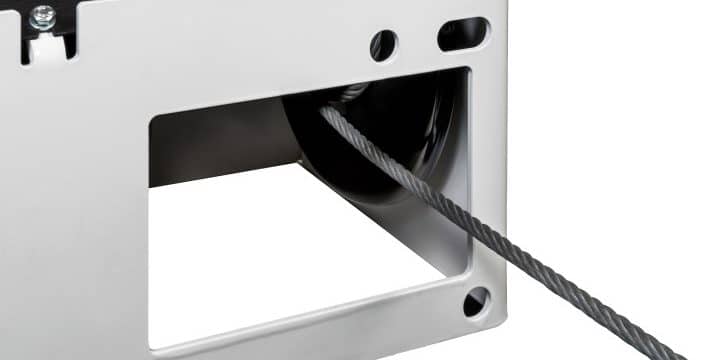

  • Cable outlet upwards, downwards or at rear

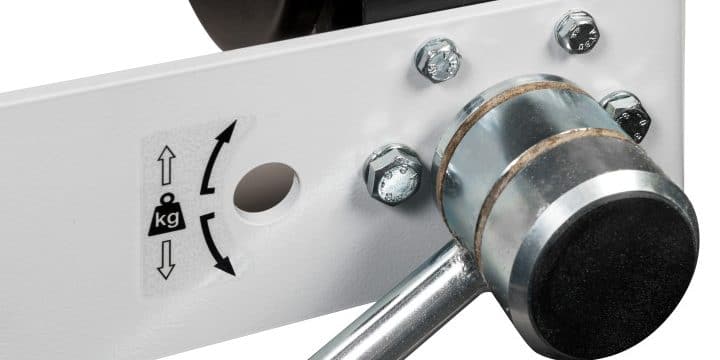

  • Adjustable crank, with ergonomic grip
  • Suitable for wall and floor mounting
  • Large rope capacity
  • Simple and quick attachment
  • Paint thickness 60 – 80 micron in 1 layer and in compliance with C1M – RAL7035 (grey)
  • Corrosion resistant
  • WW1000 and WW1500 are suitable for winch power tool AM5000
  • Gebuwin 77281850


** These variants may have some build lead time, clarification can be made via a sales team member HERE


  1. GR = Standard model
  2. GD = Grooved cable drum
  3. EV = Zinc plated finish with a minimum of 6 micron
  4. EX = ATEX certified, for zones 2 and 22

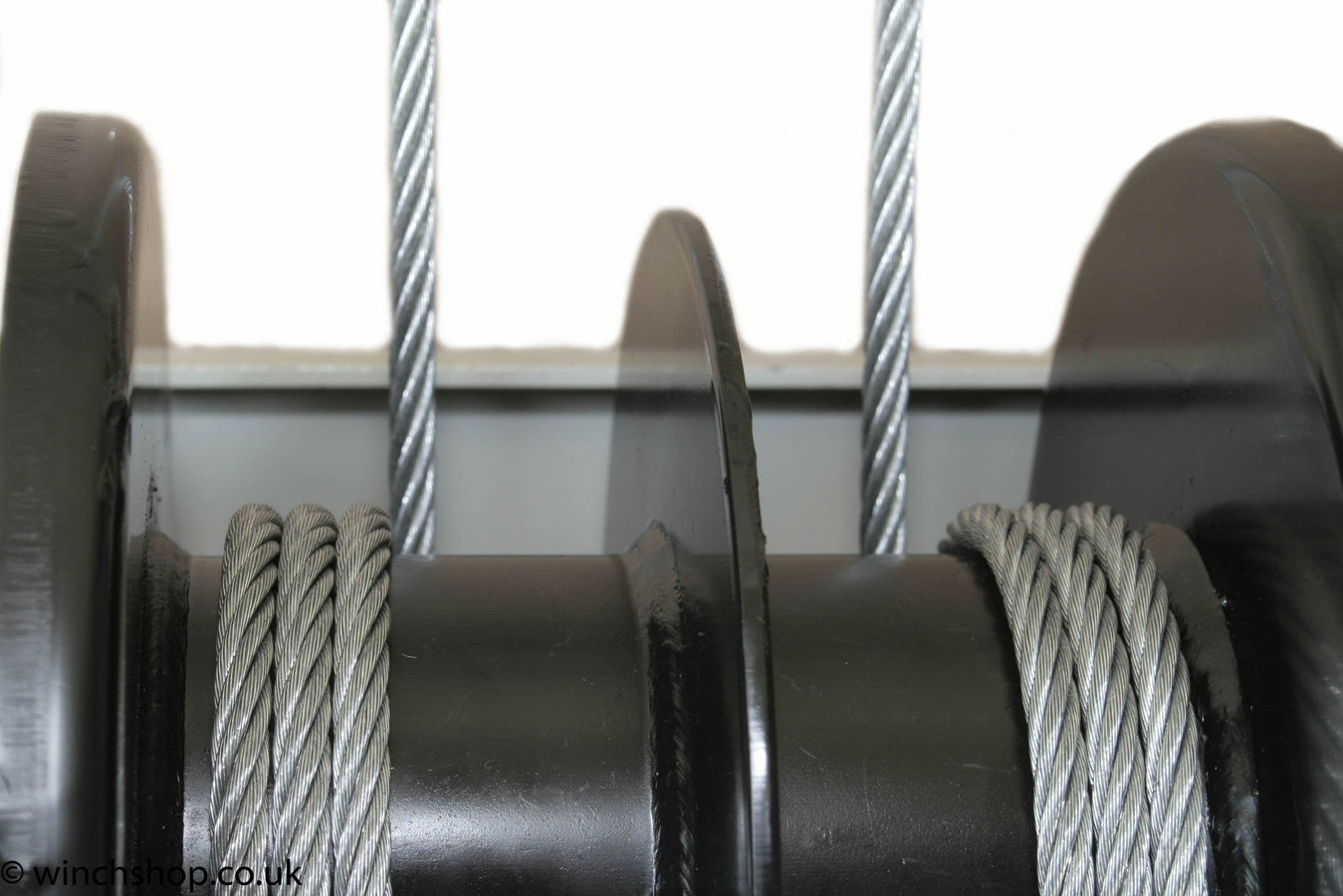

  5. 2D = Twin Drum

Related Products

  • Pulley options: LINK
  • Wire rope: LINK
  • Wire rope accessories: LINK
