WEBI Pulley Type ETT-160 - Galvanised cast iron pulley with pressed steel bracket (ETTER)

Galvanised Cast Iron Pulley with Steel Bracket ETT-160 | 100–400kg Capacity

by Etter (WEBI) Pulleys
SKU 155-4-1
Availability:
19 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
11 in stock, ready to be shipped
£48.00 - £120.00
£48.00
£48.00 - £120.00
£48.00

Bespoke Pulleys

If you are looking for a special pulley / sheave we offer a bespoke service to have them manufactured, please download our pulley form as we will require specific details. Pulley Enquiry Form

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

Description

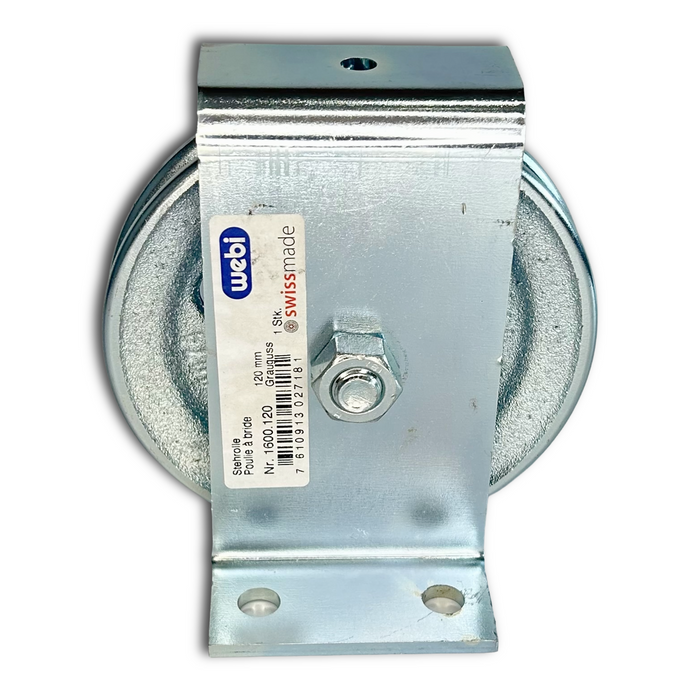

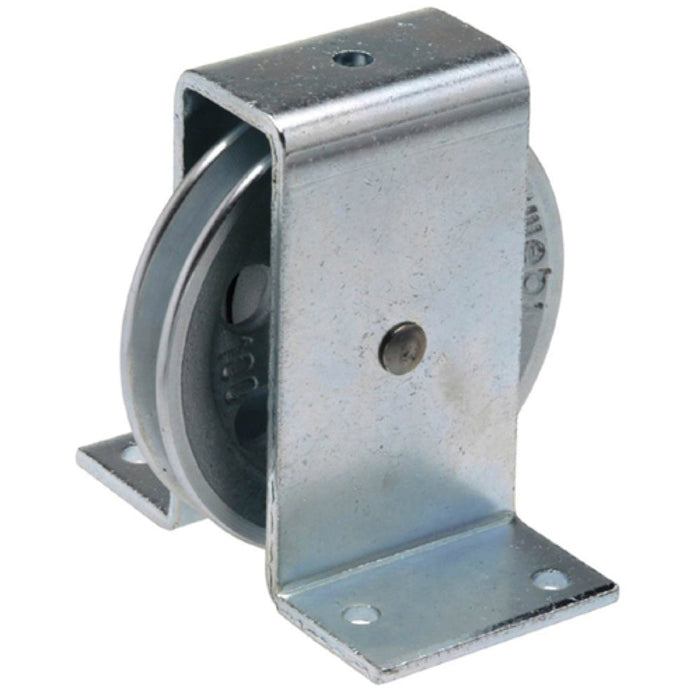

WEBI Galvanised cast iron pulley with pressed steel bracket, Type ETT-160 - Capacities 100kg - 400kg

The WEBI Type ETT-160 galvanised cast iron pulley is a durable and reliable solution for wire rope diversion in lifting and winching applications. Consisting of the ETT-74 robust cast iron sheave fitted with a pressed steel bracket, complete with bearing and fixing bolt for smooth, consistent operation.

The galvanised finish provides added corrosion resistance, making it suitable for demanding industrial and site environments where dependable rope guidance is required.

Swiss made by ETTER and available from UK stock, the ETT-160 offers proven performance for construction, maintenance and material handling applications.

Key Features

  • WEBI Galvanised cast iron pulley with bearing and pressed steel bracket
  • Complete with bearing and fixing bolt
  • Material finish - galvanised cast iron
  • 4 Capacities available from 100 kg to 400 kg
  • To suit 3 mm - 5 mm wire rope
  • For use with manual and powered winches (any applications where rope needs to be diverted)
  • SWISS MADE "ETTER - Webi"

All models available from UK stock!

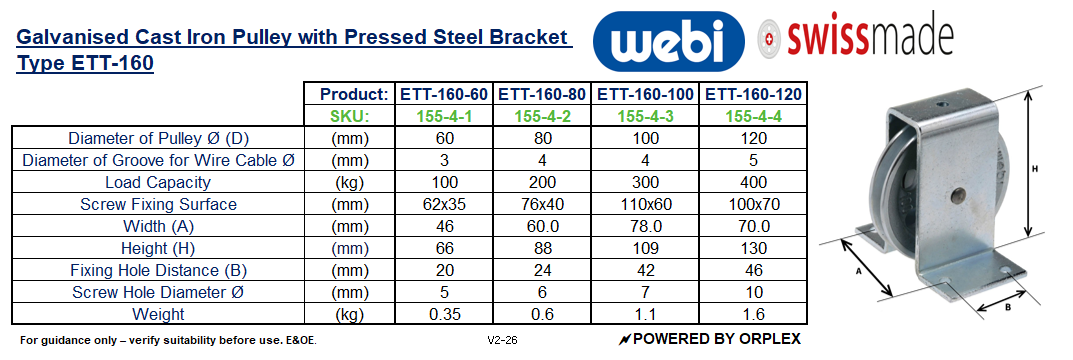

Specification

Specification

Manufacturers Spec

Download - Webi_ETT-74_Cast_Iron_Pulley_Range_Download_V1-26.pdf

Product Questions & Answers

QUESTIONS & ANSWERS

Ask a Question

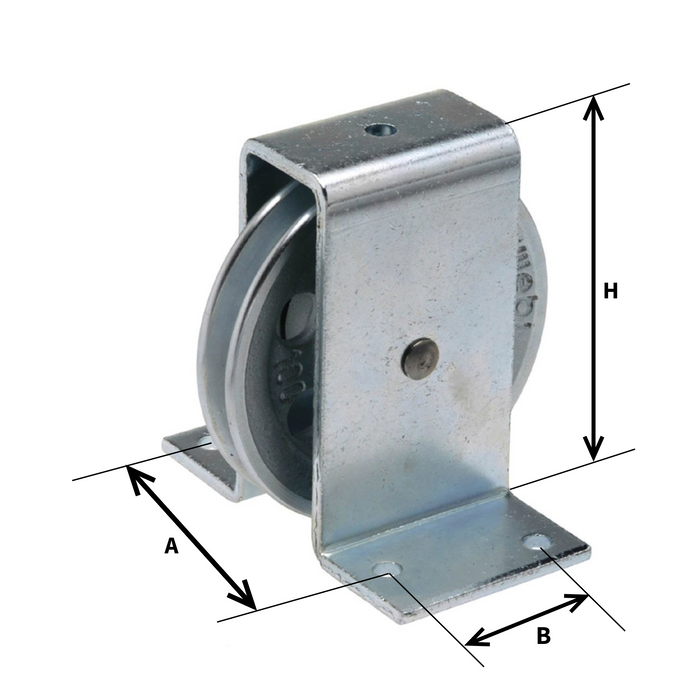

  • Have you anymore information, I need to design a system using this part but need to Model it in 3D CAD, for eg; What is the distance from centre of wheel to the base of the bracket ? Width of Brackets, hole centers ? Thanks Richard

    Hi Richard,

    Thanks for the enquiry, we have emailed you over the data sheet

  • Hello, We need two sets of such pulleys. Total SWL is 3000 Kgs. Can you manufacture such pulleys? Rope Dia is 16 mm.

    Hi

    Yes we can supply bespoke Pulleys.


    Kind regards

    Web Team

  • Do you have a 3d model of this puller in .stp file.

    No sorry the manufacture does not offer this.
