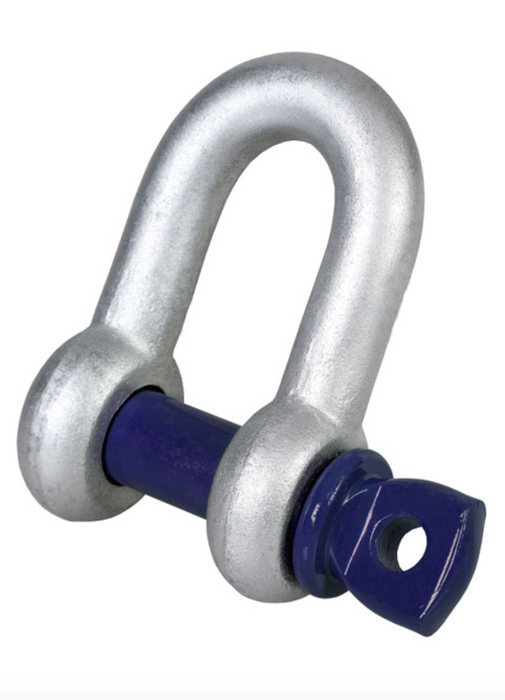

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin

SKU 269-100-22
Availability:
20 in stock, ready to be shipped
Availability:
18 in stock, ready to be shipped
Availability:
28 in stock, ready to be shipped
Availability:
9 in stock, ready to be shipped
Availability:
26 in stock, ready to be shipped
Availability:
30 in stock, ready to be shipped
Availability:
10 in stock, ready to be shipped
Availability:
8 in stock, ready to be shipped
Availability:
5 in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price £1.15 - Original price £307.36
Original price
£1.15
£1.15 - £307.36
Current price £1.15
WLL: 0.5t

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

GT Blue Pin Grade 6 Dee Shackles with Screw Collar Pin

  • Grade 6 high tensile steel body and pin, quenched and tempered.
  • Hot dipped galvanised finish.
  • Meets the W.L.L. requirements of EN 13889 (from 0.5t to 25t) and US Fed. Spec RR-C 271.
  • Temperature range 0ºC up to +200ºC.
  • Minimum breaking load is 6 times the W.L.L.
  • Marked with CE, W.L.L, manufacturers ID, size and traceability code.
  • Certification available



Spec

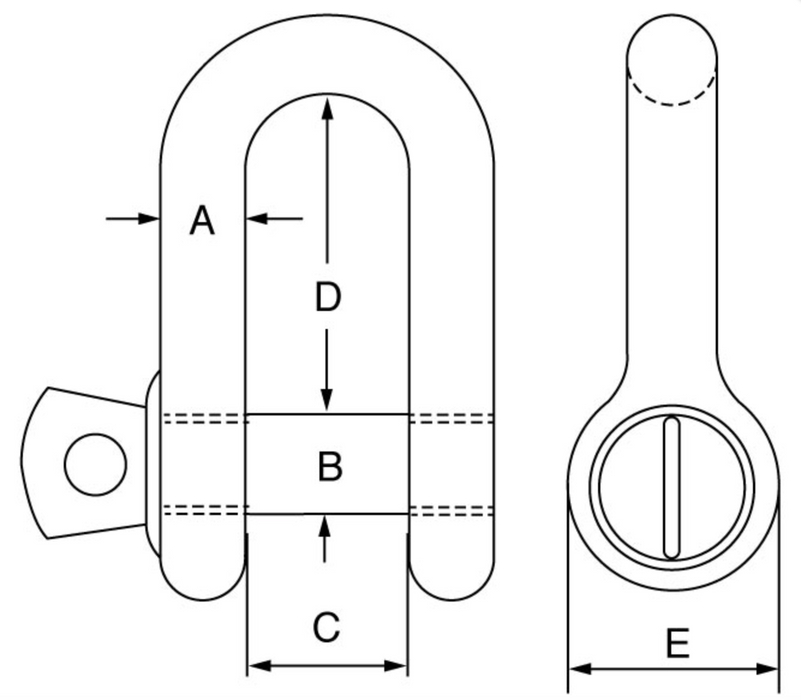

SKU W.L.L. A B C D E Weight
t mm mm mm mm mm kgs
269-100-22 0.5 6.4 8 12 22 20 0.06
269-100-23 0.75 8 10 13 26 21 0.11
269-100-24 1 9.5 11 17 32 26 0.15
269-100-25 1.5 11 12 18 36.5 29 0.21
269-100-26 2 12.7 16 20.6 41.3 32 0.37
269-100-27 3.25 16 19.8 27 51 43 0.65
269-100-28 4.75 19 22 32 62 51 1.04
269-100-29 6.5 21.7 27 36.6 74.8 58 1.56
269-100-30 8.5 25.4 30 43 81 68 2.32
269-100-31 9.5 28.5 33 46 90 75 3.28
269-100-32 12 31.5 36 51.6 100.8 83 4.51
269-100-33 13.5 34.9 39 57 112.5 92 5.93
269-100-34 17 38 42 60 125 99 7.89
269-100-35 25 44 52 73 146.5 126 13.4
269-100-36 35 50 56 82 171 138 18.85
269-100-37 55 63.5 68 105 203 180 37.86
