Understanding Run Time on a Portable Capstan Winch
🧭 Understanding Run Time on a Portable Capstan Winch
When choosing a portable capstan winch, one of the most common questions users ask is:
“How long will it run on a tank of fuel or a single charge?”
The answer depends on several factors — from the type of winch to the load applied and how it’s being used. This is always a tricky question to answer as there are so many variables but this guide from Winchshop helps breaks down what affects run time and how to estimate it in real-world conditions.
⚙️ What Is a Portable Capstan Winch?
A capstan winch uses a rotating drum (capstan) and rope friction to pull or lift loads continuously over long distances. Unlike drum winches, the rope doesn’t store on the winch — allowing for unlimited pulling length.

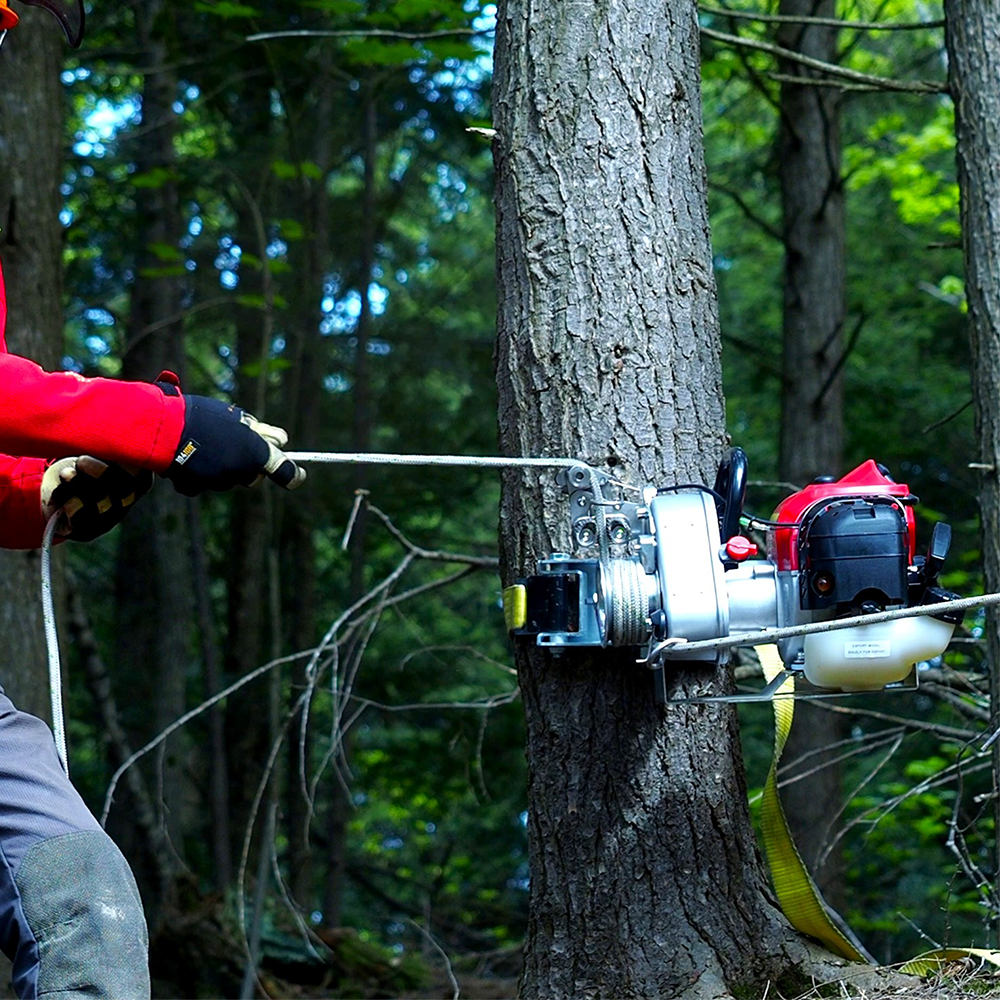

Portable models, such as petrol-powered winches like the Portable Winch Co. PCW3000 or PCW5000, or battery-powered models like the PCW3000-Li, are popular in utilities, telecoms, forestry, and rescue work thanks to their compact, self-contained design.
🔋 Run Time Factors
The total run time of a portable capstan winch depends on:
1. Power Source
-
Petrol Models: Typically run 2 to 3 hours on a full tank, depending on load and engine size.
-
Battery Models: Average 30 to 60 minutes of continuous use per battery, with quick-swap lithium-ion packs available for extended operation. A good solution is to buy larger batteries or multiple batteries to extend operating duty whilst on site or out on the forest, for example this 5amp battery.
2. Load Weight
Heavier loads increase engine or battery draw. For example, pulling a 500 kg cable drum will consume power faster than hauling lighter telecom rope or fibre optic cable.
3. Duty Cycle
In most practical scenarios, winches aren’t pulling continuously. Operators reposition, set anchors, and adjust loads — meaning the winch isn’t running 100% of the time.
👉 As a result, a single tank or battery often lasts several hours of typical field use.
4. Environmental Conditions & Obstacles
Cold temperatures, altitude, and rope friction can slightly reduce performance and run time. The terrain it has to be pulled over can produce different run times, obstacles increases the effort and reduces run time.
5. Operator Conditions
The nature of winching work sets out that a Portable winch is unlikely to be running constantly as you'd run out of rope if nothing else and probably fuel! The winch is typically being turned on and off between pulling loads, some loads will be lighter than others and some will snag on the ground. To help stop your load snagging on the ground in forestry use consider using a skidding cone or the forestry kit.
⛽ Typical Examples
| Winch Model | Power Source | Typical Run Time | Notes |
|---|---|---|---|
| PCW3000 (Petrol, Honda GX35) | 4-stroke engine | ~2.5 hours | Lightweight, efficient for telecom/utility use |
| PCW5000 (Petrol, Honda GXH50) | 4-stroke engine | ~2 hours | Higher torque for heavier loads |
| PCW3000-Li (Battery) | 82V Lithium-Ion | 30–60 mins continuous | Swap or purchase several batteries for longer use |
🧰 Extending Your Winch Run Time
-
Use correct rope diameter and low-friction pulleys to reduce power demand.
-
Avoid overloading – operate within the winch’s rated capacity.
-
Keep the engine well maintained or batteries fully charged.
-
For extended field operations, carry extra fuel or spare batteries.
🏁 Summary
While run time on a portable capstan winch varies by model and load, users can expect:
-
Petrol models: Around 2–3 hours per tank under standard conditions.
-
Battery models: Around 30–60 minutes per charge, depending on load and battery size (higher amp-hour (Ah) batteries provide longer run times.
For most utility, telecoms, and forestry applications, that’s plenty of time to complete several pulls before refuelling or recharging.
