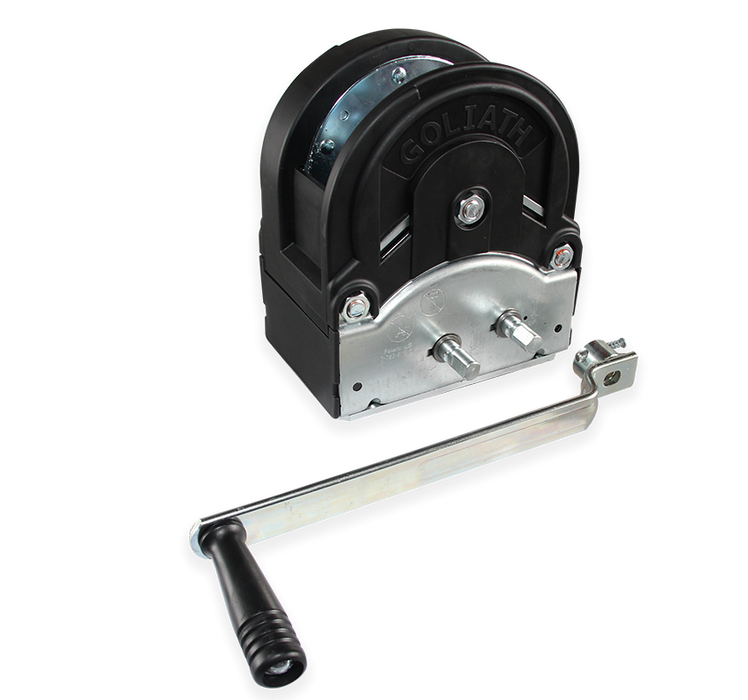

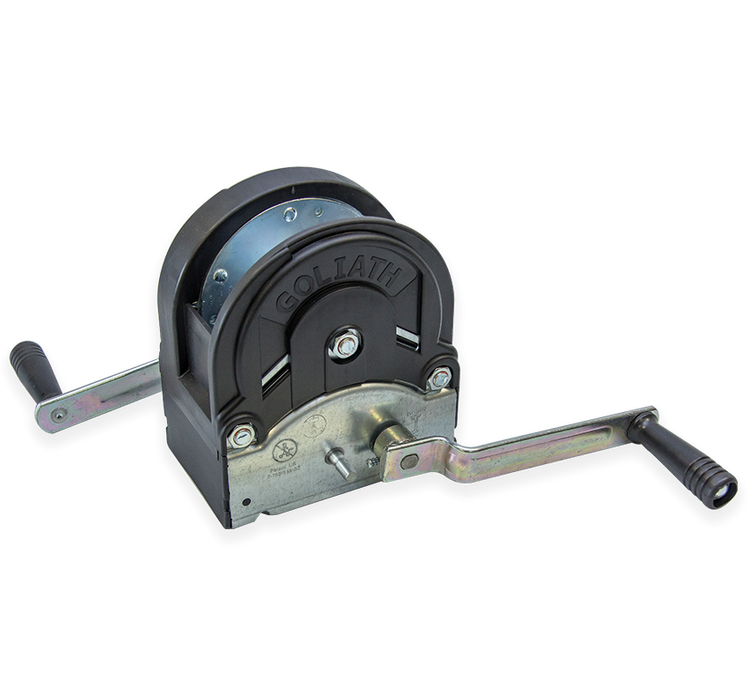

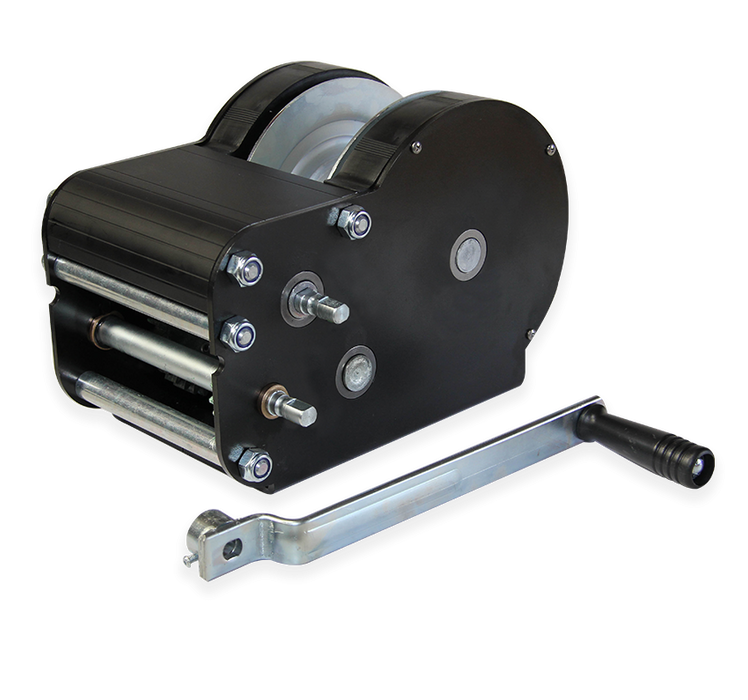

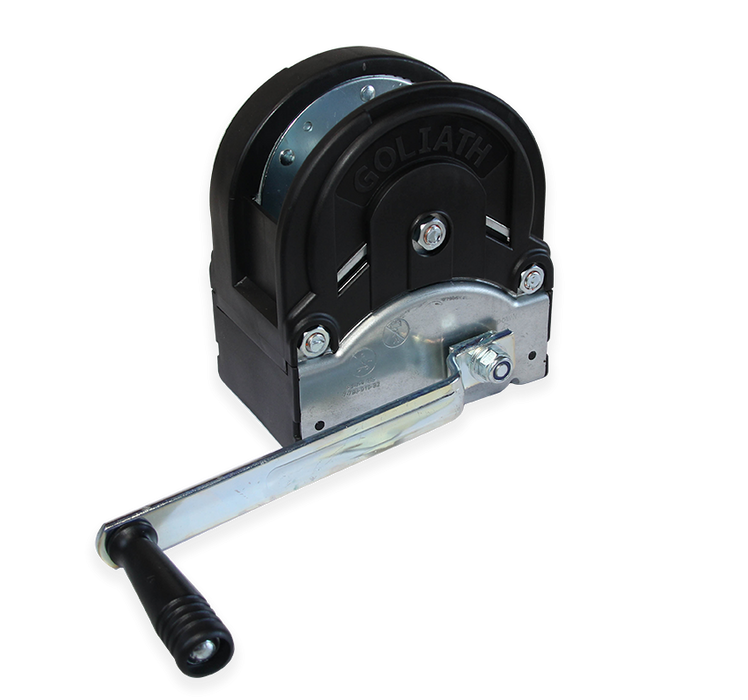

Goliath TPV Wire Rope Hand Winch
TPV Winches with new generation high safety self-braking system.
- Lifting capacity up to 2,400kg
- Towing capacity up to 3,000kg
- Double speed, protection cover
- Handle: fixed, removable, two, left and right
- Quick cable mounting
- Can be installed as a column or base mounted winch, or can wall mounted when purchased with optional wall mounting plate
GOLIATH has been designing and making, for more than 30 years, winches that are used in a great number of industries.
The manual winch is a safety device governed by strict technical rules and whose design is framed by the European standard EN13157 A1.
Spec
| Type | TPV900 | TPV1200 | TPV1600 | TPV2200 | TPV3000 | TPV1600/2 | TPV2200/2 |
|---|---|---|---|---|---|---|---|
| SKU |
151-15-1 | 151-15-2 | 151-15-3 | 151-15-4 | 151-15-5 | 151-15-6 | 151-15-7 |
| Lifting Capacity 1st Layer: | 700kg | 900kg | 900kg | 1040kg | 2400kg | 900kg | 1040kg |
| Lifting Capacity Last Layer: | 325kg | 500kg | 560kg | 650kg | 1500kg | 560kg | 650kg |
| Cable 1 Ø (mm) / length (m) | 6 / 16 | 7 / 10 | 7 / 10 | 8 / 10 | 9 / 10 | 7 / 10 | 8 / 10 |
| Cable 2 Ø (mm) / length (m) | 5 / 21 | 6 / 13 | 6 / 13 | 7 / 10 | 8 / 10 | 6 / 13 | 7 / 10 |
| Number of Speeds | 1 | 1 | 2 | 2 | 2 | 2 | 2 |
| Reduction Ratio 1 | 1/4.85 | 1/9.71 | 1/4.85 | 1/4.85 | 1/10 | 1/4.85 | 1/4.85 |
| Reduction Ratio 2 | - | - | 1/9.71 | 1/9.71 | 1/21.77 | 1/9.71 | 1/9.71 |
| Reduction Ratio 3 | - | - | - | - | - | - | - |
| Drum Hub Ø | 54mm | 63mm | 63mm | 72mm | 80mm | 63mm | 72mm |
| Type of Winch | Horiz. Setup/Fix Hand | Horiz. Setup/Fix Hand | Horiz. Setup/Rem. Hand | Horiz. Setup/Rem. Hand | Horiz. Setup/Rem. Hand | Right/Left Hand | Right/Left Hand |
| Handle | Fixed | Fixed | Removable | Removable | Removable | Double. Right/Left | Double, Right/Left |
| Handle Length: | - | - | 290mm | 290mm | 290mm | 200mm | 290mm |
| Weight: | 5.1kg | 6.7kg | 6.6kg | 6.7kg | 20kg | 6.2kg | 6.7kg |
Downloads:
Legislation
The EN13157 A1 standard defines the essential criteria required to ensure your safety and justify the CE mark on winches (in the context of European use).
