MR3000 (C5M) & MR5000 (C5M) Marine Worm Gear Winch

by Gebuwin
SKU 156-19-2
Availability:
In stock
Availability:
In stock
Original price £4,779.60 - Original price £6,286.52
Original price
£4,779.60
£4,779.60 - £6,286.52
Current price £4,779.60

Quantity Required Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, require a larger quantity of stock or if you have any other enquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email to sales@winchshop.co.uk

Description

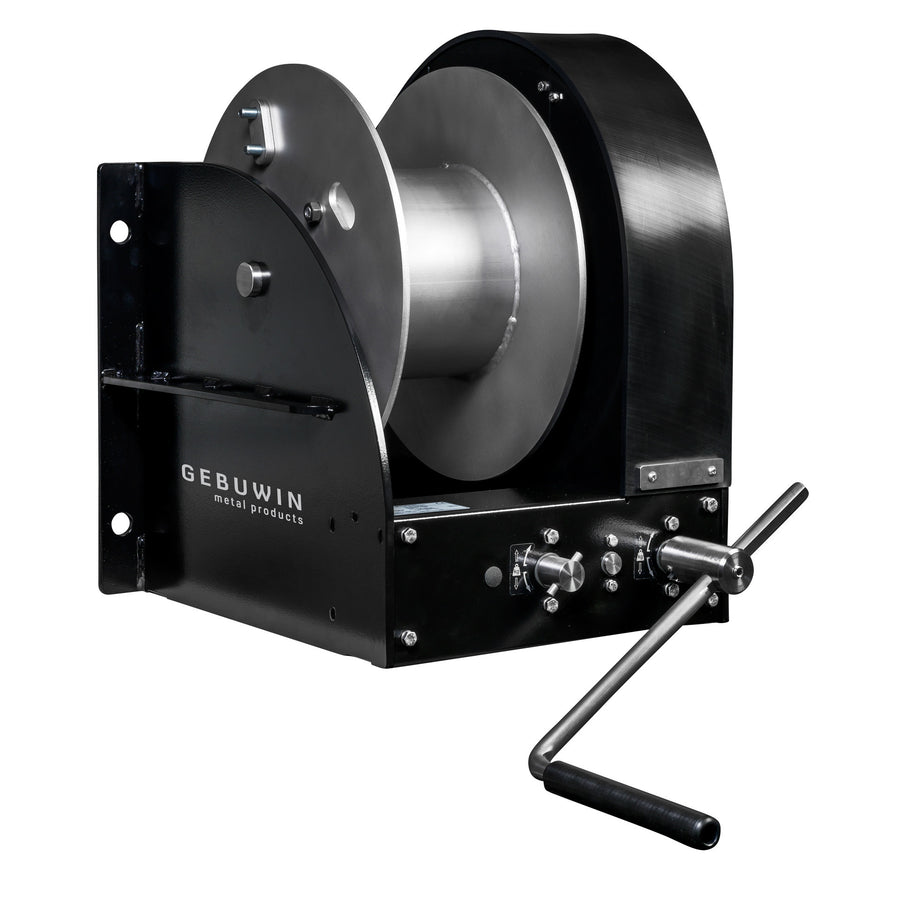

The MR3000 and MR5000 (C5M) marine worm gear winch is a Gebuwin hand winch bundle spanning 3000kg to 5000kg on the first rope layer, built for salt water and offshore work.

3000-5000kg C5M marine worm gear winch

This single listing bundles two painted C5M models on one page: the MR3000 rated 3000kg and the MR5000 rated 5000kg. Both use fully covered, sealed IP54 worm gear transmission and a load pressure brake that holds the load at any height.

  • MR3000: 3000kg first layer, 16mm rope, 104kg

  • MR5000: 5000kg first layer, 20mm rope, 135kg

  • Static safety factor of 4 for hoisting and pulling

C5M painted finish for marine use

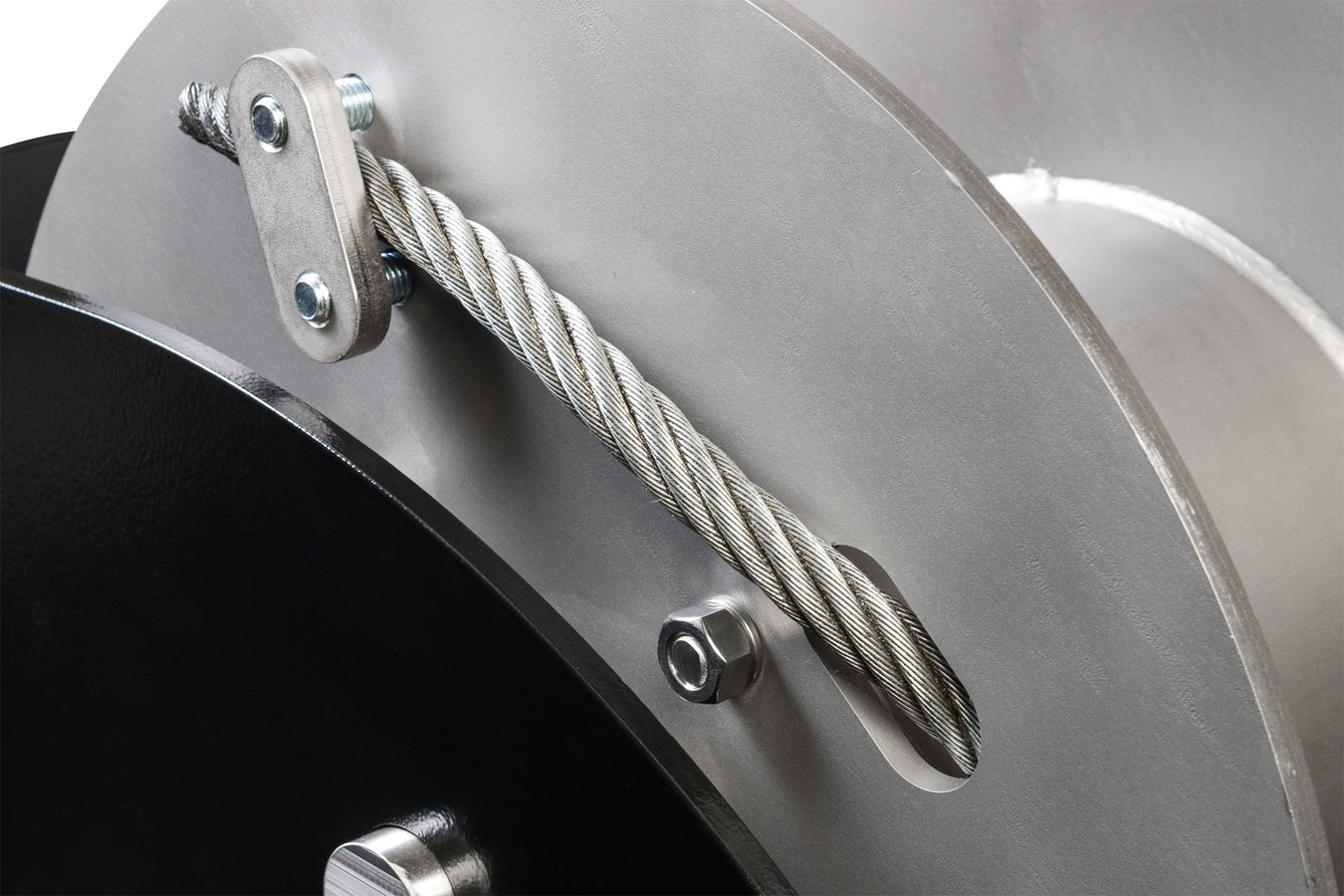

The steel housing carries a three layer C5M paint specification to DIN 12944 in black RAL 9005, while the drum, crank and outgoing shafts are 316 stainless steel with A4 stainless fasteners, suiting sea water and chemical installations.

  • Grooved drum, multiple compartment and ATEX options

  • Mountable in any position with large cable storage

Browse the full Marine Grade Winches range for painted and stainless alternatives.

Options

  • GD = Grooved cable drum
  • XD = Multiple (X) cable compartments possible, click here to contact Gebuwin for specific requests
  • EX = ATEX certified, for zones 2 and 22

Spec

Capacity 1st layer

3000 kg

Capacity 4th layer

2066 kg

Capacity top layer

1711 kg

Rope diameter-Ø

16 mm

Rope storage 1st layer

5,2 meter

Rope storage 4th layer

30,8 meter

Rope storage top layer

41,9 meter

Lift per crank rotation

11 (5) mm

Crank effort at full load

31 (14) daN

Weight (without rope)

104 kg

Capacity 1st layer

5000 kg

Capacity 4th layer

3485 kg

Capacity top layer

3165 kg

Rope diameter-Ø

20 mm

Rope storage 1st layer

4,5 meter

Rope storage 4th layer

28,7 meter

Rope storage top layer

39,4 meter

Lift per crank rotation

12,5 (2,5) mm

Crank effort at full load

73 (15) daN

Weight (without rope)

135 kg
