Installation Plate - Up to 15000lbs Winch

SKU 161-28-2
Availability:
Only 1 left!
Original price £55.56 - Original price £55.56
Original price
£55.56
£55.56 - £55.56
Current price £55.56

Not In Stock or Need Help?

If you're unable to locate the specific item you're searching for, or if you have any inquiries, please don't hesitate to reach out to us. Kindly send us your requirements via email at sales@winchshop.co.uk

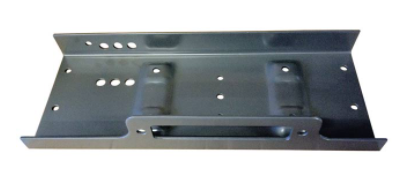

Folded metal installation plate with fairlead locator holes and mounting pattern holes.

This plate is 600mm wide.

This plate is designed for use with:

  • All Samurai 8000lb to 12000lb 12v and 24v steel & synthetic rope winches.
  • Samurai 2500 EN Winches
  • All Spartan 8000lb to 12000lb 12v and 24v steel & synthetic rope winches.
  • NH Hydraulic Winches
  • Phantom Winches

The Universal winch mount plate is ideal for fitting to recovery vehicles and 4x4. It is easily adaptable to suit all your needs and can be used in conjunction with 95% of winches available on the market today including Warrior, Superwinch and Warn.  The plate has an all steel construction and is finished in durable dark grey powder coat. The mounting holes for the winch (hole centres 254mm x 114mm) are on pressed, raised sections of the plate so that the winch mounting bolt heads are flush with the underside of the plate so it can easily be bolted or welded down to a flat surface.

There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead to along with pre-drilled holes in the plate to feed battery or solenoid cables through.  This is designed to suit a fairlead with 255mm hole centres.

    Spec

    Dimensions:

    ♦ Overall Size: 600mm x 210mm x 80mm
    ♦ Material Thickness: 5mm
    ♦ Fairlead Hole Centres: 255mm
    ♦ Winch Mounting Holes: 254mm x 114mm
